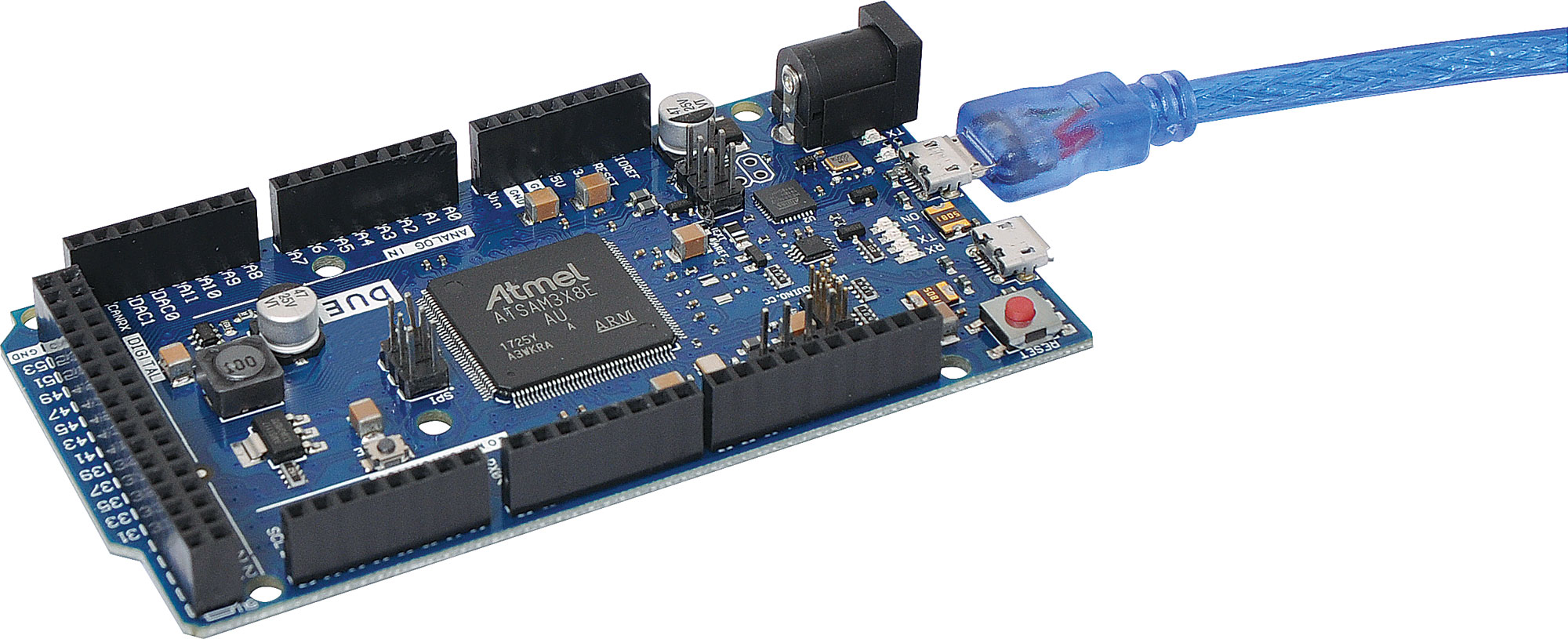

Funduino Due Arduino Compatible Development Board

Be the first to review this product
The Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller.
SKU: Z6244
$90.00
Per ea
QuantityPrice
ea$90.00
2+$80.91
4+$71.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable. The Due is compatible with all 3.3V Arduino shields.

Note: This board is a compatible clone version of the original Arduino Due.

Features

  • A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
  • CPU Clock at 84MHz.
  • 96KB of SRAM.
  • 512KB of Flash memory for code.
  • A DMA controller that can relieve the CPU from doing memory intensive tasks.

Specifications

Microcontroller: AT91SAM3X8E

  • Operating Voltage: 3.3V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-16V
  • Digital I/O Pins: 54 (of which 12 provide PWM output)
  • Analog Input Pins: 12
  • Analog Outputs Pins: 2 (DAC)
  • Total DC Output Current on all I/O lines: 130 mA
  • DC Current for 3.3V Pin: 800 mA
  • DC Current for 5V Pin: 800 mA
  • Flash Memory: 512 KB all available for the user applications
  • SRAM: 96 KB (two banks: 64KB and 32KB)
  • Clock Speed: 84 MHz

12 Months

We Offer 12 Months for this product
