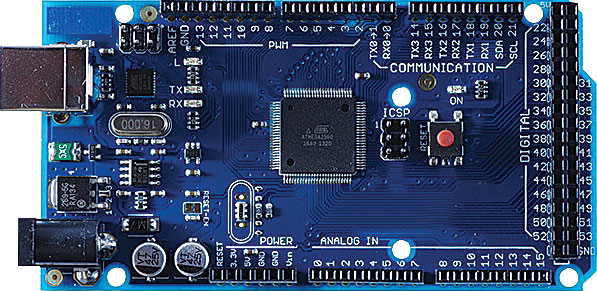

Funduino Mega 2560 R3 Arduino Compatible Development Board

Be the first to review this product
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the micro
SKU: Z6241
$49.95
Per ea
QuantityPrice
ea$49.95
2+$45.45
4+$44.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable.
Compatible with most Arduino shields.

Specifications

Microcontroller: ATmega2560

  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 54 (of which 14 provide PWM output)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 256 KB of which 4 KB used by boot loader
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16MHz

Features

  • Treated as an original Arduino Mega by the Arduino IDE. No messing around with extra libraries.
  • Includes USB cable for easy connection to your PC
  • 100% Arduino Mega compatible, identical layout and construction.
  • ATMega16U2 on board
  • 1 year Altronics warranty.
