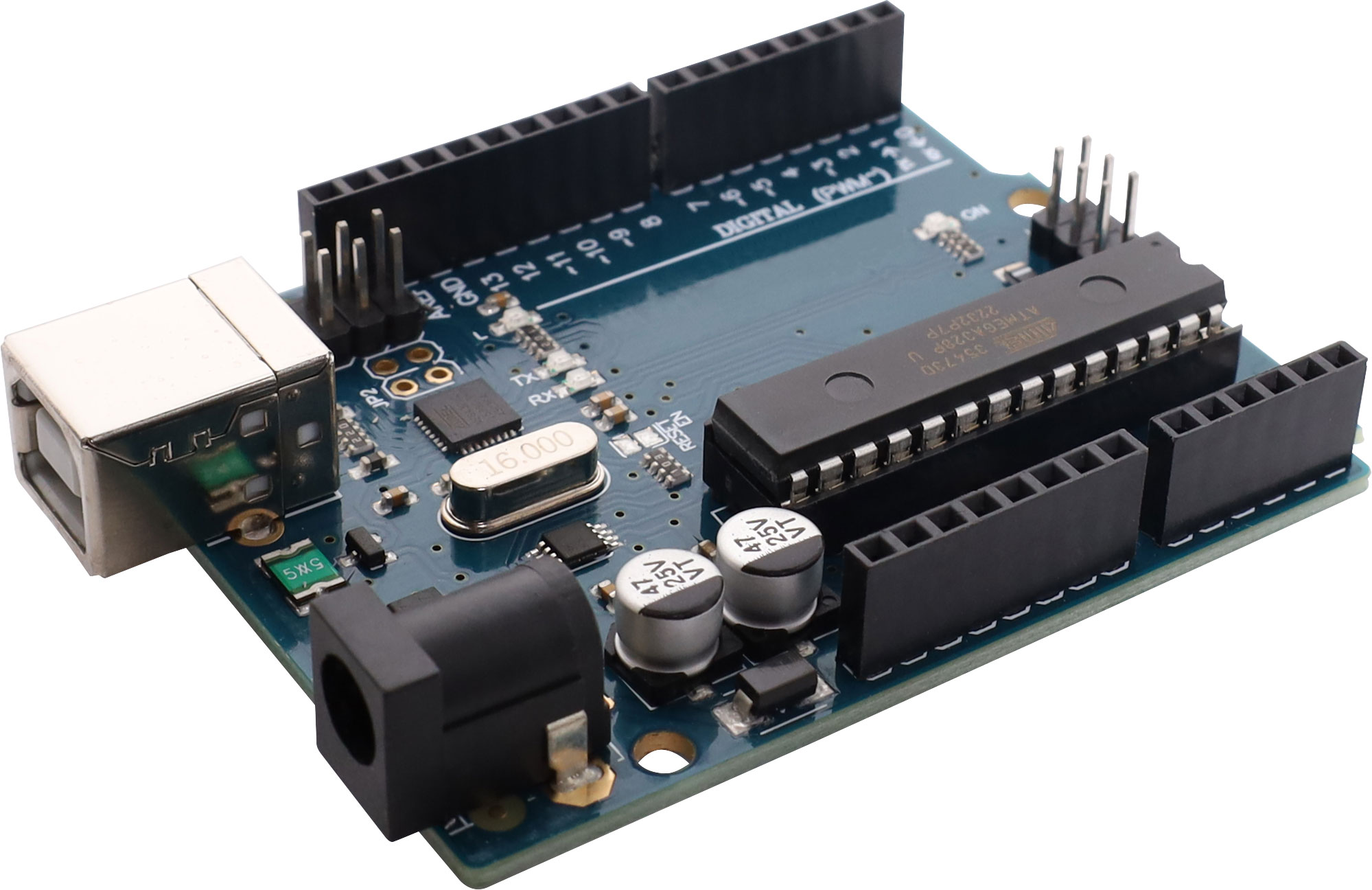

Funduino Uno R3 Arduino Compatible Development Board

Be the first to review this product
A microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable.
SKU: Z6240
$31.77
Per ea
QuantityPrice
ea$31.77
2+$28.14
4+$25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

An Arduino UNO R3 compatible clone board by Funduino. It is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with the included USB cable.

Features

  • Treated as an original Arduino Uno by the Arduino IDE. No messing around with extra libraries.
  • Includes USB cable for easy connection to your PC
  • 100% Arduino UNO R3 compatible, identical layout and construction.
  • ATMega16U2 on board
  • 1 year Altronics warranty.

Specifications

Microcontroller: ATmega328

  • Operating Voltage: 5V
  • Input Voltage (recommended); 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 6
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50mA
  • Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by boot loader
  • SRAM: 2 KB (ATmega328)
  • EEPROM: 1 KB (ATmega328)
  • Clock Speed: 16MHz
