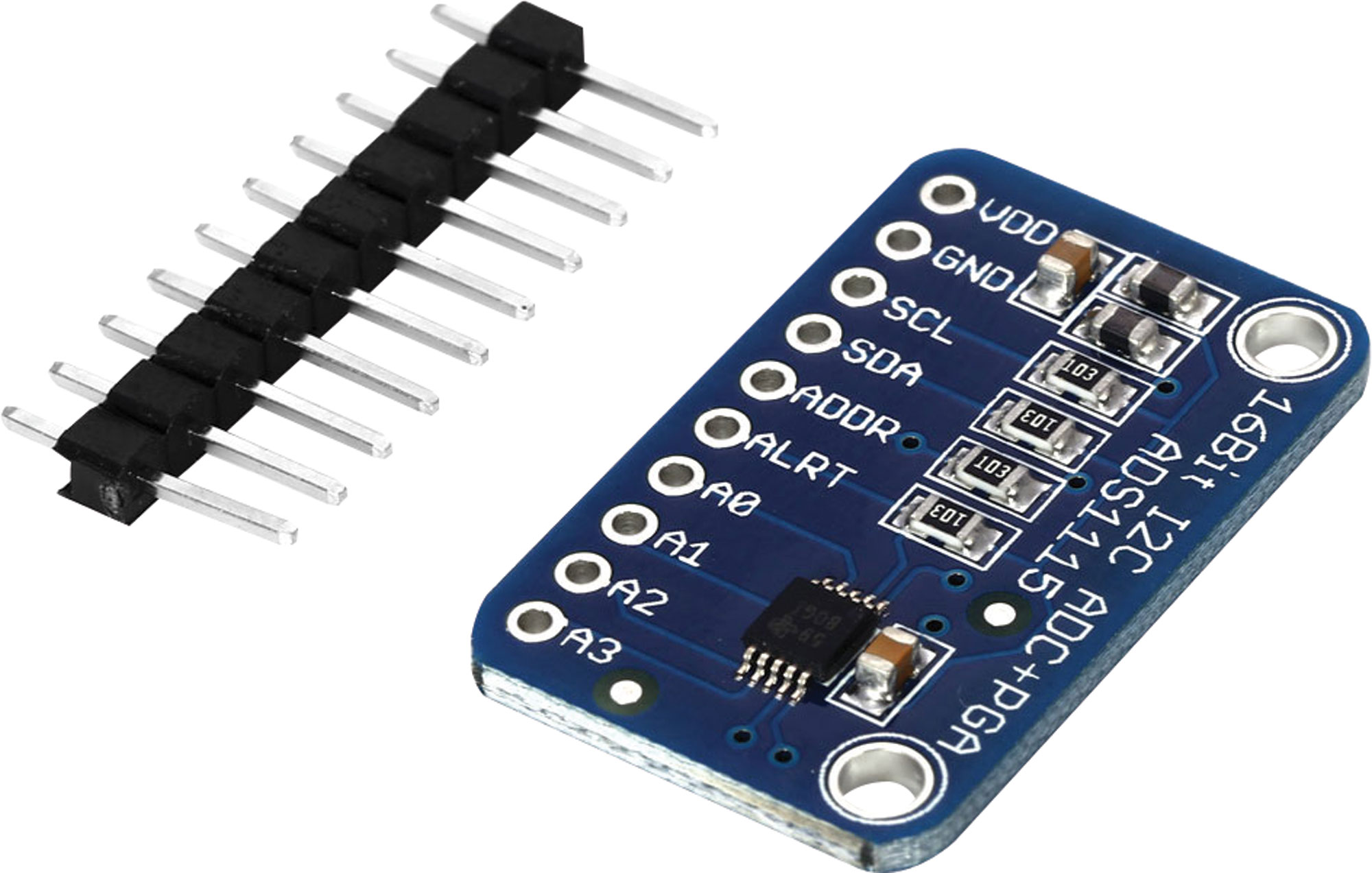

Analog-to-Digital ADS1115 16 Bit Converter Module

SKU: Z6221
A popular high precision ADC for microcontroller designs with 860 samples/sec over I2C. 2-5V input.
$18.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.86
2+ $17.05
4+ $15.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The ADS1115 4-channel breakout board is perfect for adding high-resolution analog to digital conversion to any microprocessor-based project. They are controlled from a standard 2 wire I2C bus providing 8 differential channels or 16 single end channels. A programmable gain amplifier is inbuilt for x16 gain. 2-5V input logic signal, compatible wirth all common 3.3V and 5V microcontrollers.

ADC Breakout Setup Guide

Specifications:

ADC bit rate: 16 Bit

  • Interface type: I2C
  • Channel: 4 Channel AN0 AN1 AN2 AN3 or 2 different input
  • Input voltage: 2.0-5.5V
  • Channel input voltage: 0-VDD
  • Continuous mode: Only 150μA
  • Single-shot mode: Auto Shut-Down
  • Programmable data rate: 8sps-860sps
  • Module size: Approx. 17 x 28 x 0.1mm
  • Pin size: Approx. 11 x 25mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
