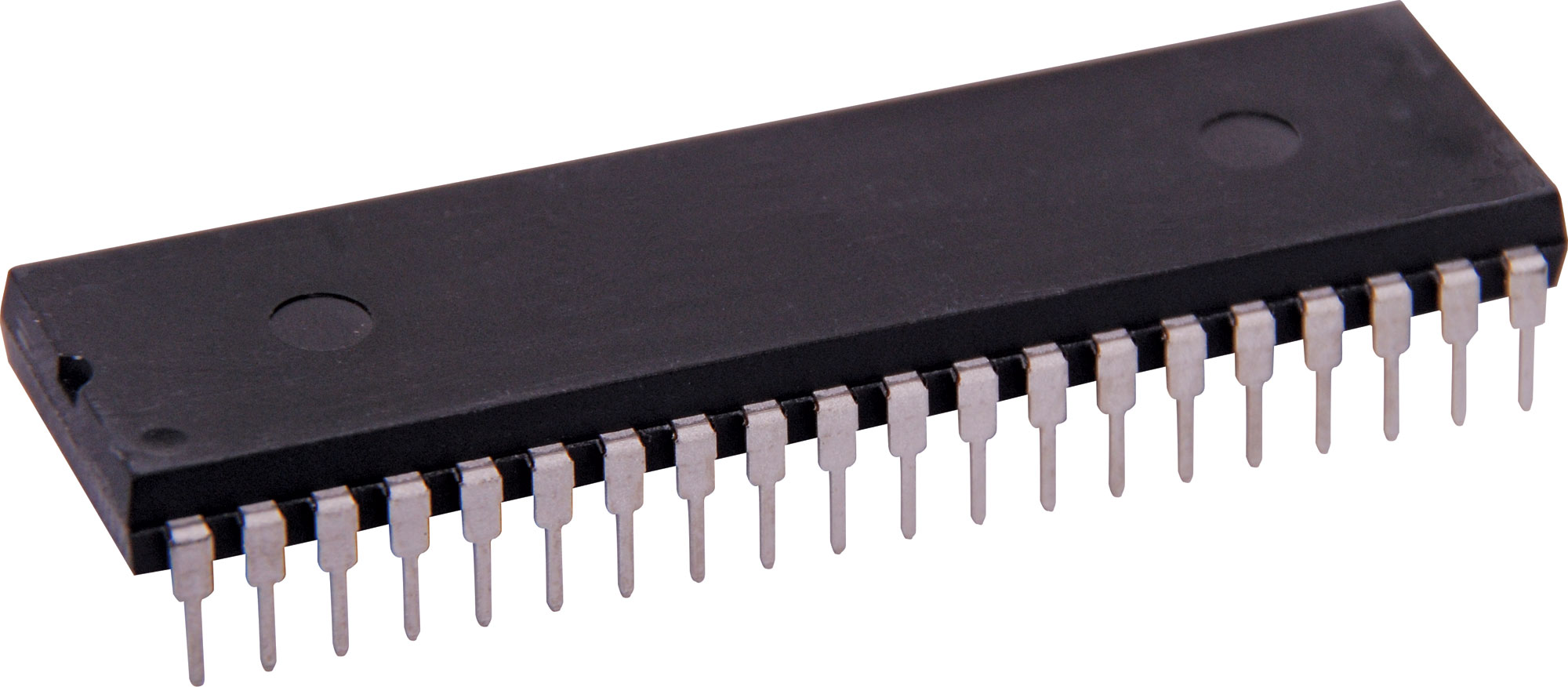

PIC16F877-20P IC

Be the first to review this product
PIC16F877-20/P
SKU: Z5070
$9.77
Per ea
Quantity Price
ea $9.77
5+ $8.91
10+ $8.28

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PIC16F877-20/P

The PIC16F877-20/P microcontroller is from a long line of microcontrollers commonly used world wide in thousands of applications. varying from simple sensor and reaction applications through to complex robotics and system control.
Due to their simple instruction set which makes them easy to program, large number of input output ports for connecting sensors and relays and their ability to withstand harsh environmental conditions. They have established themselves as an industry workhorse for the electronics industry and hobbyist alike.

Features

  • High performance RISC CPU
  • Only 35 single word instructions to learn
  • All single cycle instructions except for program branches which are two cycle
  • Operating speed: DC - 20 MHz clock input, DC - 200 ns instruction cycle
  • Up to 8K x 14 words of FLASH Program Memory,
  • Up to 368 x 8 bytes of Data Memory (RAM)
  • Up to 256 x 8 bytes of EEPROM Data Memory
  • Pinout compatible to the PIC16C73B/74B/76/77
  • Interrupt capability (up to 14 sources)
  • Eight level deep hardware stack
  • Direct, indirect and relative addressing modes
  • Power-on Reset (POR)
  • Power-up Timer (PWRT) and
  • Oscillator Start-up Timer (OST)
  • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • Programmable code protection
  • Power saving SLEEP mode
  • Selectable oscillator options
  • Low power, high speed CMOS FLASH/EEPROM technology
  • Fully static design
  • In-Circuit Serial Programming (ICSP) via two pins
  • Single 5V In-Circuit Serial Programming capability
  • In-Circuit Debugging via two pins
  • Processor read/write access to program memory
  • Wide operating voltage range: 2.0V to 5.5V
  • High Sink/Source Current: 25 mA
  • Commercial, Industrial and Extended temperature ranges
  • Low-power consumption:
  • - < 0.6 mA typical @ 3V, 4 MHz
  • - 20 μA typical @ 3V, 32 kHz
  • - < 1 μA typical standby current

Specifications

Manufacturer: Microchip

  • Product category: 8-bit Microcontrollers - MCU
  • Core: PIC
  • Data bus width: 8 bit
  • Maximum clock frequency: 20 MHz
  • Program memory size: 8 KB
  • Data RAM size: 368 B
  • On-Chip ADC: Yes
  • Operating supply voltage: 2 V to 5.5 V
  • Maximum operating temperature: + 70 C
  • Package / case: PDIP-40
  • Mounting style: Through Hole
  • A/D Bit size: 10 bit
  • A/D Channels available: 8
  • Data ROM size: 256 B
  • Interface type: MSSP, PSP, USART
  • Minimum operating temperature: 0 C
  • Number of programmable I/Os: 33
  • Number of timers: 3
  • Processor series: PIC16
  • Program memory type: Flash
  • Series: PIC16
  • Supply voltage - Max: 5.5 V
  • Supply voltage - Min: 4 V

12 Months

We Offer 12 Months for this product
