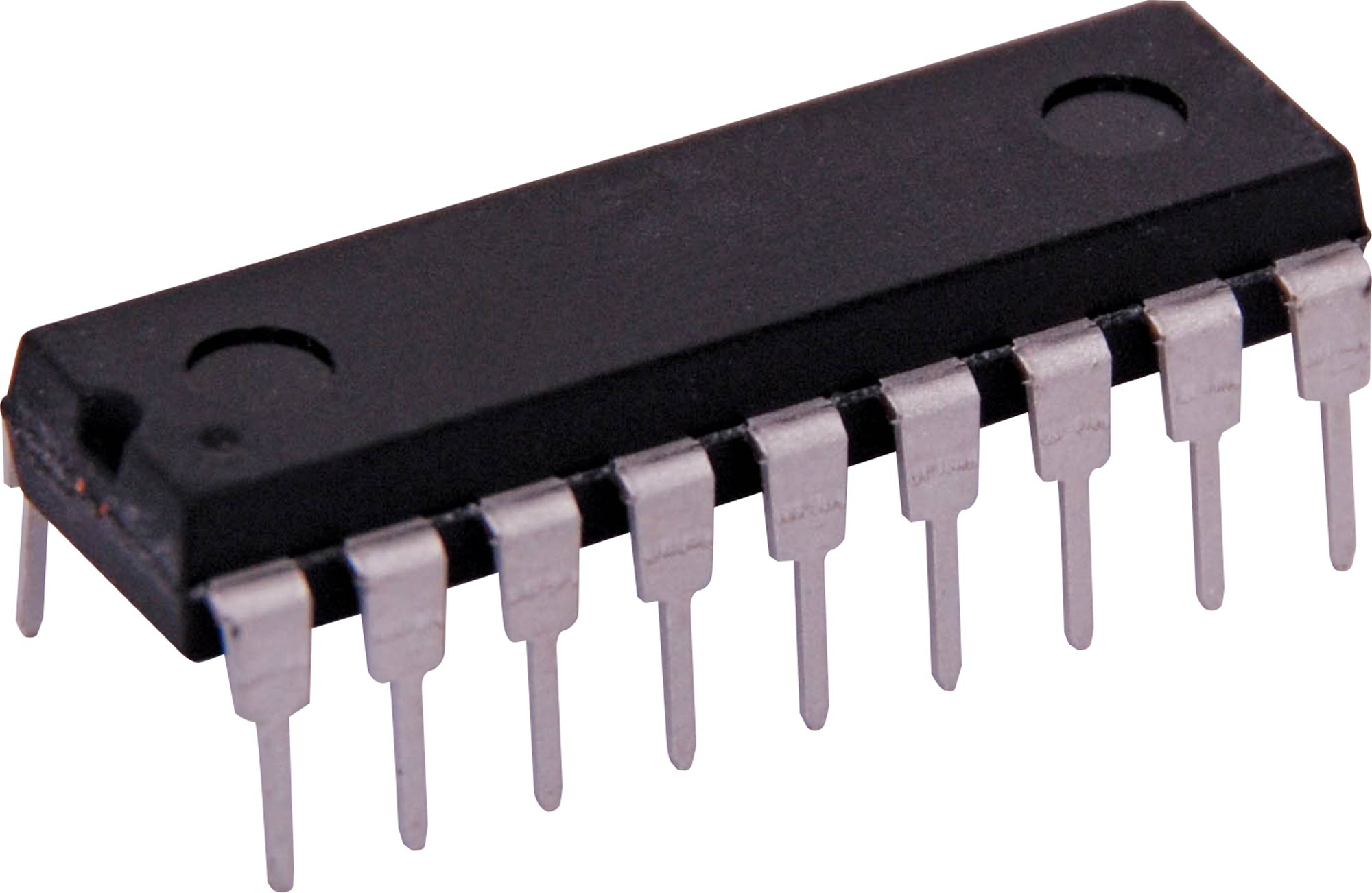

PIC16F88 I/P PIC Microcontroller

SKU: Z5060
The PIC16F88-I/P is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture.
$9.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.05
5+ $8.55
10+ $7.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The PIC16F88-I/P is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 368bytes of data memory size, 16 general-purpose I/O pins, two comparators and 7-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

Features:

  • 35 (14-bit wide) easy instructions to learn
  • 8 level hardware stack
  • 1 (9-bit) file select register
  • Hardware interrupt handling
  • 256bytes of EEPROM data memory
  • Power on reset (POR)
  • Watch dog timer (WDT)
  • Two 8-bit digital timers
  • One 16-bit digital timer
  • In-Circuit Serial Programming™ (ICSP™)

Specifications

Controller Family/Series: PIC16F CPU Speed: 20MHz

  • Program Memory Size: 7KB
  • RAM Memory Size: 368Byte
  • No. of Pins: 18Pins
  • MCU Case Style: DIP
  • No. of I/O''s: 16I/O''s
  • Embedded Interface Type: I2C, SPI, USART
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 5.5V

Warranty & Returns

12 Months

We Offer 12 Months for this product
