LD1117V33 - 3.3V 800mA TO-220 Low Drop Out Voltage Regulator (10 Pack)

Be the first to review this product

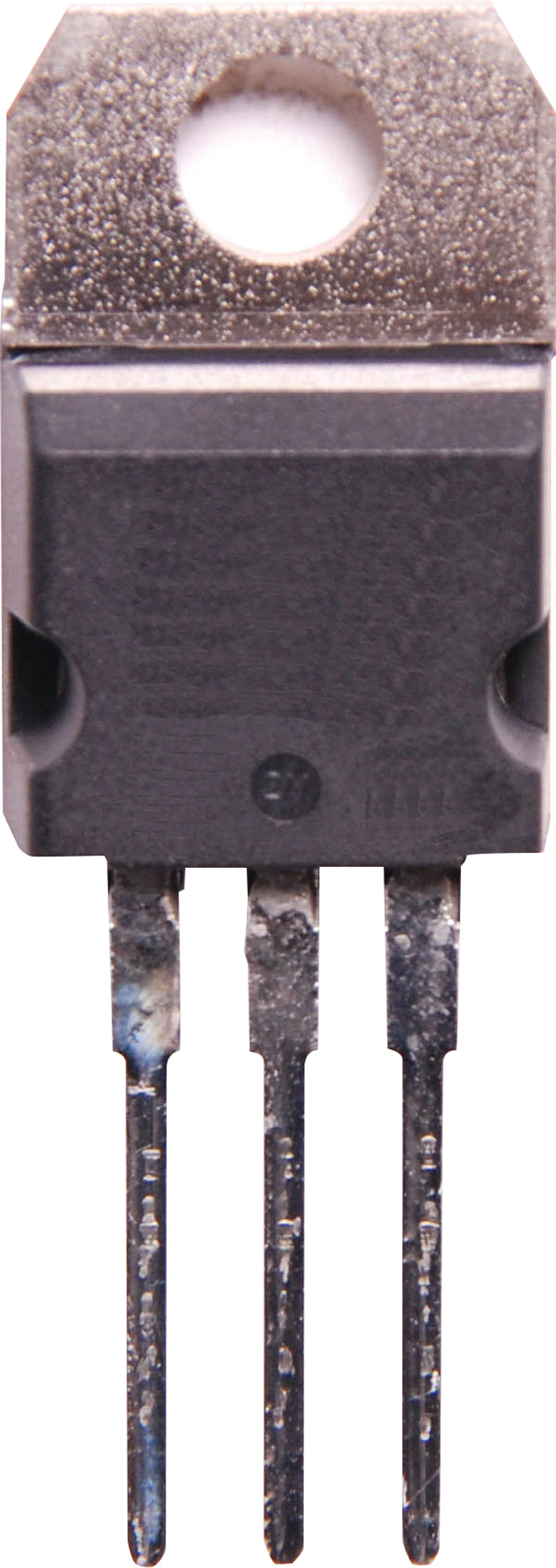

LD1117V33 - 3.3V 800mA TO-220 Low Drop Out Voltage Regulator
SKU: Z2695
$5.00
Per ea
QuantityPrice
ea$5.00
10+$4.50
25+$3.86

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A low drop out voltage regulator with a fixed 3.3V output.

Specifications:

Input Voltage MAX: 15 V

  • Output Voltage: 3.3 V
  • Dropout Voltage - Max: 1.1 V
  • Output Current: 800mA Min, 1.3 A Max
  • Load Regulation: 10 mV
  • Number of Outputs: 1 Output
  • Output Type: Fixed
  • Maximum Operating Temperature: + 150 C
  • Mounting Style: Through Hole
  • Package / Case: TO-220-3
  • Input Bias Current - Max: 5 mA
  • Line Regulation: 6 mV
  • Maximum Power Dissipation: 12 W
  • Minimum Operating Temperature: 0 C
  • Packaging: Tube
  • Series: LD1117V
  • Voltage Regulation Accuracy: 1 %
