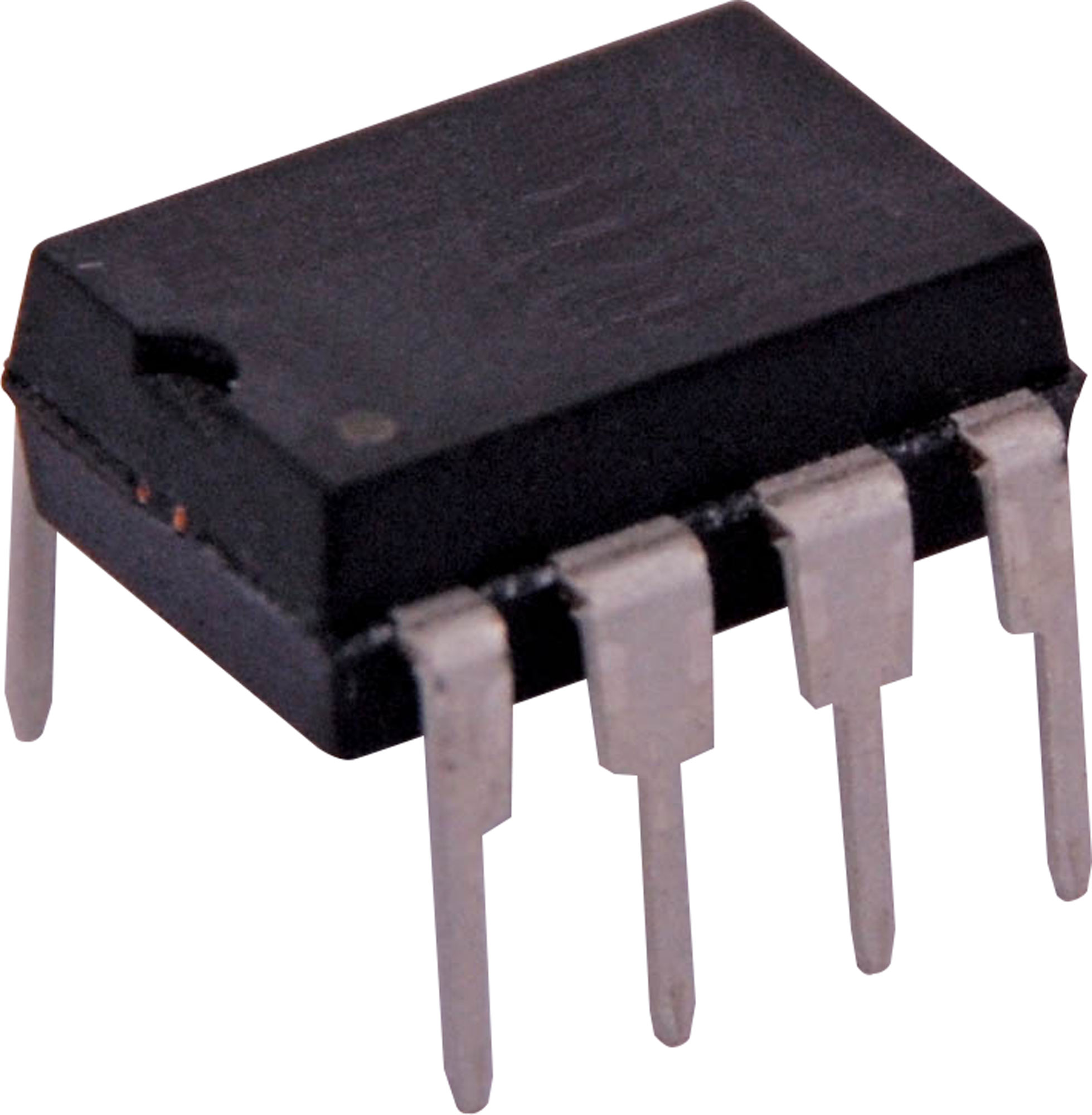

LM833 Dual Low Noise Op. Amplifier

SKU: Z2598
LM833 Dual Low Noise Op. Amplifier
$2.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.50
10+ $2.27
25+ $1.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

LM833 Dual Low Noise Op. Amplifier

The LM833 is a dual general purpose operational amplifier designed specifically for high performance in audio systems.
This dual amplifier chip utilizes new circuit design and processing methods to ensure low noise, high speed and wide bandwidth without requiring surplus external components or lowering stability. The LM833 is internally compensated for all closed loop gains and is therefore perfect for all preamp and high level stages in PCM and HiFi systems.
The LM833 is pin-for-pin replacement for industry standard dual operational amplifiers.

Features

  • Wide dynamic range: >140dB
  • Low input noise voltage: 4.5nV/√Hz
  • High slew rate: 7 V/μs (typ); 5V/μs (min)
  • High gain bandwidth: 15MHz (typ); 10MHz (min)
  • Wide power bandwidth: 120KHz
  • Low distortion: 0.002%
  • Low offset voltage: 0.3mV
  • Large phase margin: 60°

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
