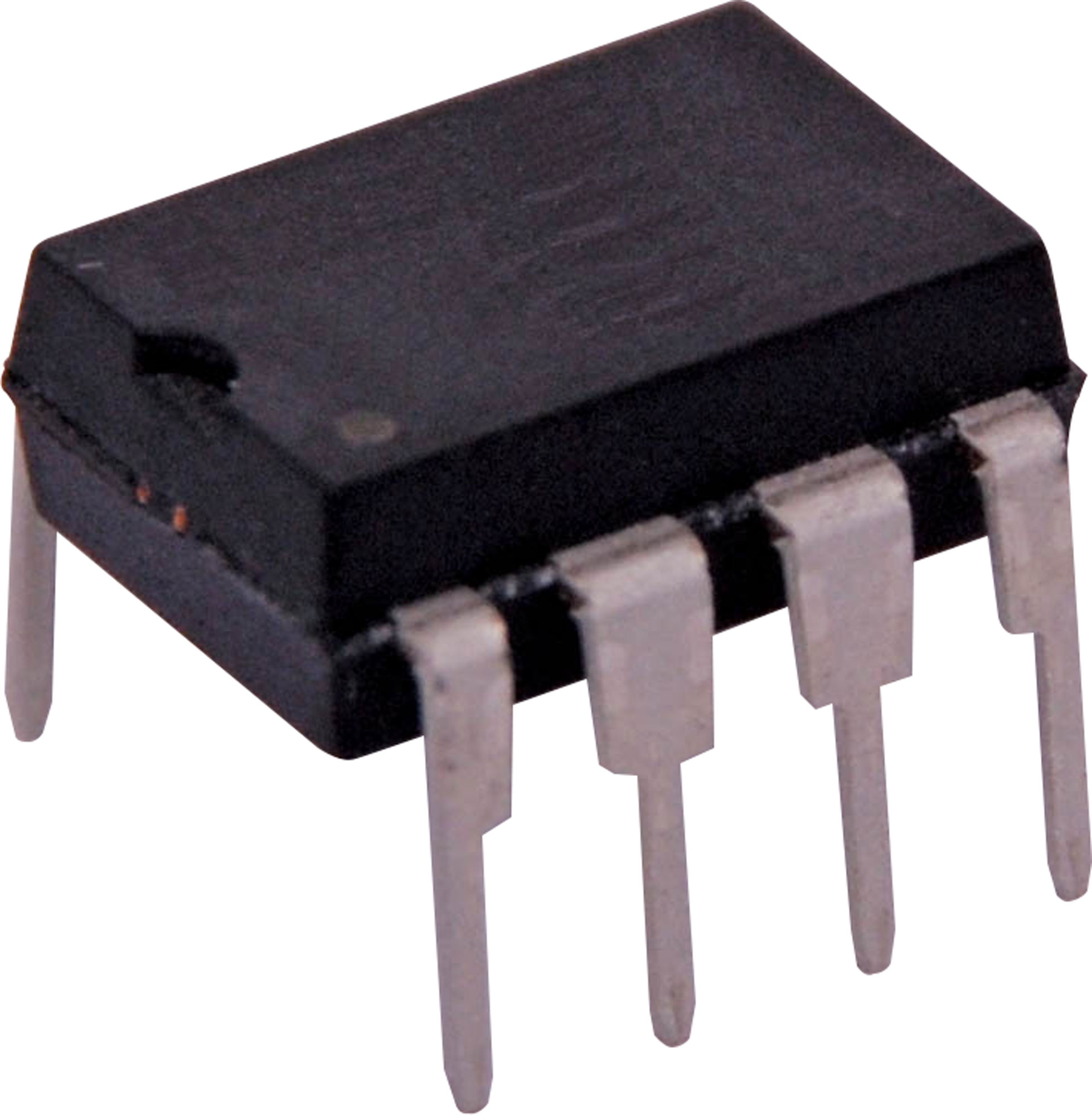

LM393 Dual Voltage Comparator Low Power (50 Pack)

Be the first to review this product
LM393 Dual Comparator Low Power
SKU: Z2558
$1.95
Per ea
QuantityPrice
ea$1.95
10+$1.82
25+$1.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

LM393 Dual Comparator Low Power

The LM393 contains two independent low voltage comparators designed to run from a single power supply over a wide range of voltages. The LM393 can also run from split power supplies.
The LM393 has a unique characteristic in that the input common-mode voltage range includes ground even though it can be operated from a single power supply voltage.

Features

  • Wide single rail supply voltage range or dual rail supplies: +2 V to +36 V or ±1 V to ±18 V
  • Very low power supply current (0.45 mA) independent
  • of supply voltage (1 mW/comparator at +5 V)
  • Low input bias current: 20 nA typ.
  • Low input offset current: ±3 nA typ.
  • Low input offset voltage: ±1 mV typ.
  • Input common-mode voltage range includes ground
  • Low output saturation voltage: 80 mV typ. (Isink = 4 mA)
  • Differential input voltage range equal to the supply voltage
  • TTL, DTL, ECL, MOS, CMOS compatible outputs

12 Months

We Offer 12 Months for this product
