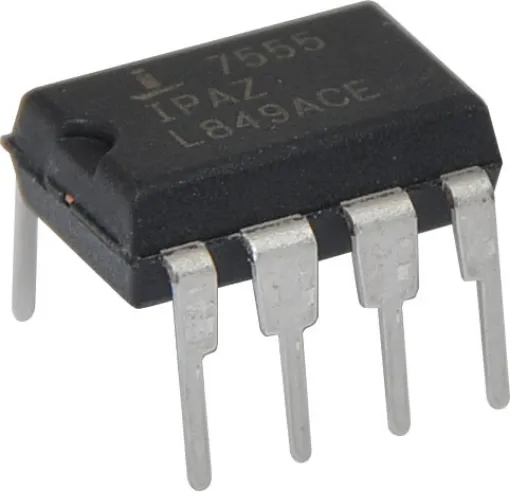

ICM7555PAZ CMOS Timer (10 Pack)

SKU: Z2021
This CMOS timer provides a significant improve on performance over the standard SE/NE 555/556 and 355 timers, whilst being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low Threshold, Trigger and Reset currents, no crowbarring of the supply current d
$1.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.82
10+ $1.59
25+ $1.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This CMOS timer provides a significant improve on performance over the standard
SE/NE 555/556 and 355 timers, whilst being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low Threshold, Trigger and Reset currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple Control Voltage for stable operation.

Applications
• Precision timing
• Pulse generation
• Sequential timing
• Time delay generation
• Pulse width modulation
• Pulse position modulation
• Missing pulse detector

Features

  • Exact equivalent in most cases for SE/NE 555/556 or TLC555/556
  • Low supply current: 60μA
  • Extremely low input currents: 20pA
  • High speed operation: 1MHz
  • Guaranteed supply voltage range: 2V to 18V
  • Temperature stability: 0.005%/°Cat+25°C
  • Normal reset function - no crowbarring of supply during output transition
  • Can be used with higher impedance timing elements than regular 555/556 for longer RC time constants
  • Timing from microseconds through hours
  • Operates in both astable and monostable modes
  • Adjustable duty cycle
  • High output source/sink driver can drive TTL/CMOS
  • Outputs have very low offsets, HIGH and LOW Pb-free (RoHS Compliant)

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
