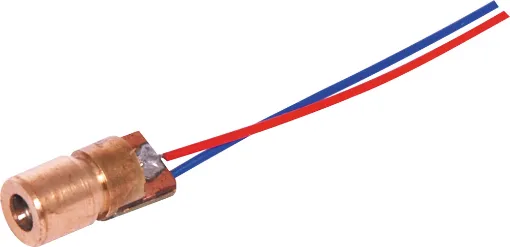

1mW Red Laser Diode

SKU: Z1692
A mini 1mW red laser diode with 650nm wavelength. 2.3V forward voltage. 35mA forward current. Fitted with 100mm flyleads.
$4.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.73
4+ $4.23
6+ $3.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A mini 1mW red laser diode with 650nm wavelength. 2.3V forward voltage. 35mA forward current. Fitted with 100mm fly leads.

Note: This is a laser diode module, not a complete laser pointer, so there are no power restrictions. However, we urge users to handle lasers responsibly. Always avoid looking directly into the beam and never point it at people, animals, vehicles, or aircraft.

Specifications

Transmit Power: 1mW

  • Standard Size: 6Ø x 10.5mm
  • Working Life: 1000+hours
  • Beam-Spot Mode: Dotted beam-spot, continuous output
  • Laser Wavelength: 650nm
  • Power: 5mW
  • Voltage: 5V
  • Current: <40mA
  • Spot Size: 10 - 15mm at 15 meters

Warranty & Returns

12 Months
