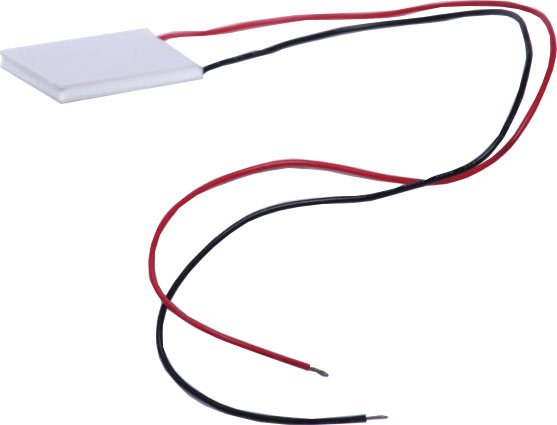

40mm Peltier Module 6A

SKU: Z1682
Uses the Peltier effect to transfer heat. Essentially creating a "cold side" and a "hot side" on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc 320mm flyleads.
Save $10.00 $9.95 $19.95

All Prices Shown are (ex GST)
Bulk Pricing
ea
$9.95 $19.95
4+
$9.95 $17.95
10+
$9.95 $16.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Uses the Peltier effect to transfer heat. Essentially creating a ‘cold side’ and a ‘hot side’ on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc. 320mm fly leads.

Note: Must be used with appropriate heat sinking to prevent the peltier device from failing.

Specifications

Temperature Differential (Tmax): 65-68°C

  • Input Voltage (Vmax): 15.4V DC
  • Input Current @ 15.4V DC (Imax): 6.1A
  • Max Cooling Power (Qmax): 51W
  • Size: 40 x 40 x 4.0mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
