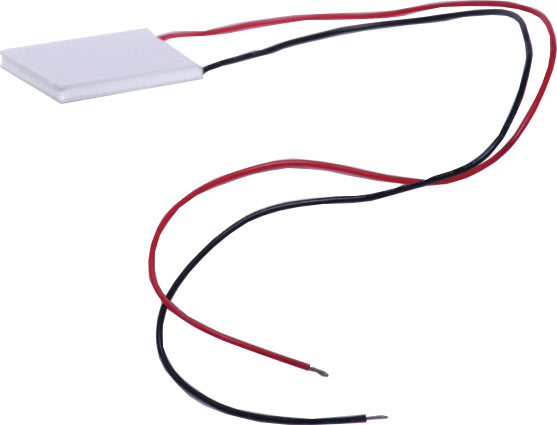

40mm Peltier Module 4A

SKU: Z1680
Uses the Peltier effect to transfer heat. Essentially creating a "cold side" and a "hot side" on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc 320mm flyleads.
Save $9.09 $9.05 $18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea
$9.05 $18.14
4+
$9.05 $17.23
10+
$9.05 $16.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Uses the Peltier effect to transfer heat. Essentially creating a ‘cold side’ and a ‘hot side’ on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc. 320mm fly leads.

Note: Must be used with appropriate heat sinking to prevent the peltier device from failing.

Specifications

Temperature Differential (Tmax): 65-68°C

  • Input Voltage (Vmax): 15.4V DC
  • Input Current @ 15.4V DC (Imax): 4.1A
  • Max Cooling Power (Qmax): 36W
  • Size: 40 x 40 x 4.7mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
