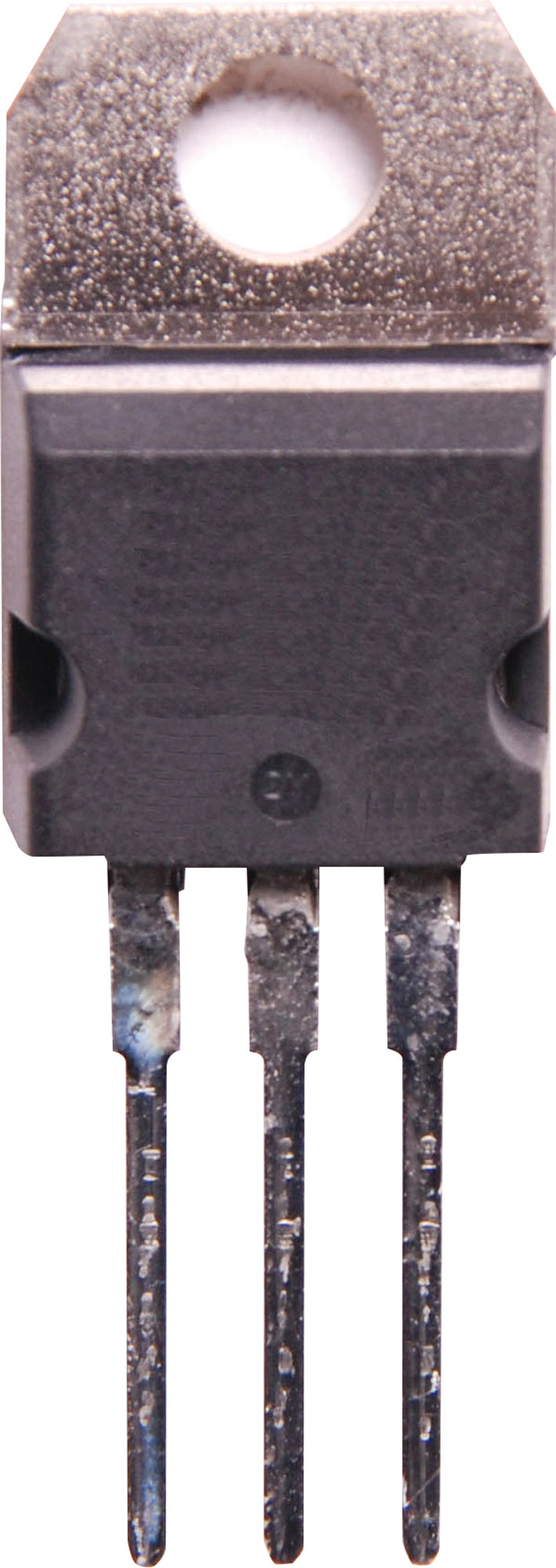

IRF9540NPBF TO-220 P-Channel MOSFET

Be the first to review this product
IRF9540 Mosfet Rating: -100V -23A Package: TO-220
SKU: Z1543
$1.77
Per ea
QuantityPrice
ea$1.77
10+$1.41
25+$1.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

IRF9540 MOSFET (MOSFET P-CH 100V 23A TO-220AB)

Rating: -100V -23A
Package: TO-220

Specifications:

FET Type: P-Channel

  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 97nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 1300pF @ 25V
  • Vgs (Max): ±20V
  • Power Dissipation (Max): 140W (Tc)
  • Rds On (Max) @ Id, Vgs: 117 mOhm @ 11A, 10V
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
