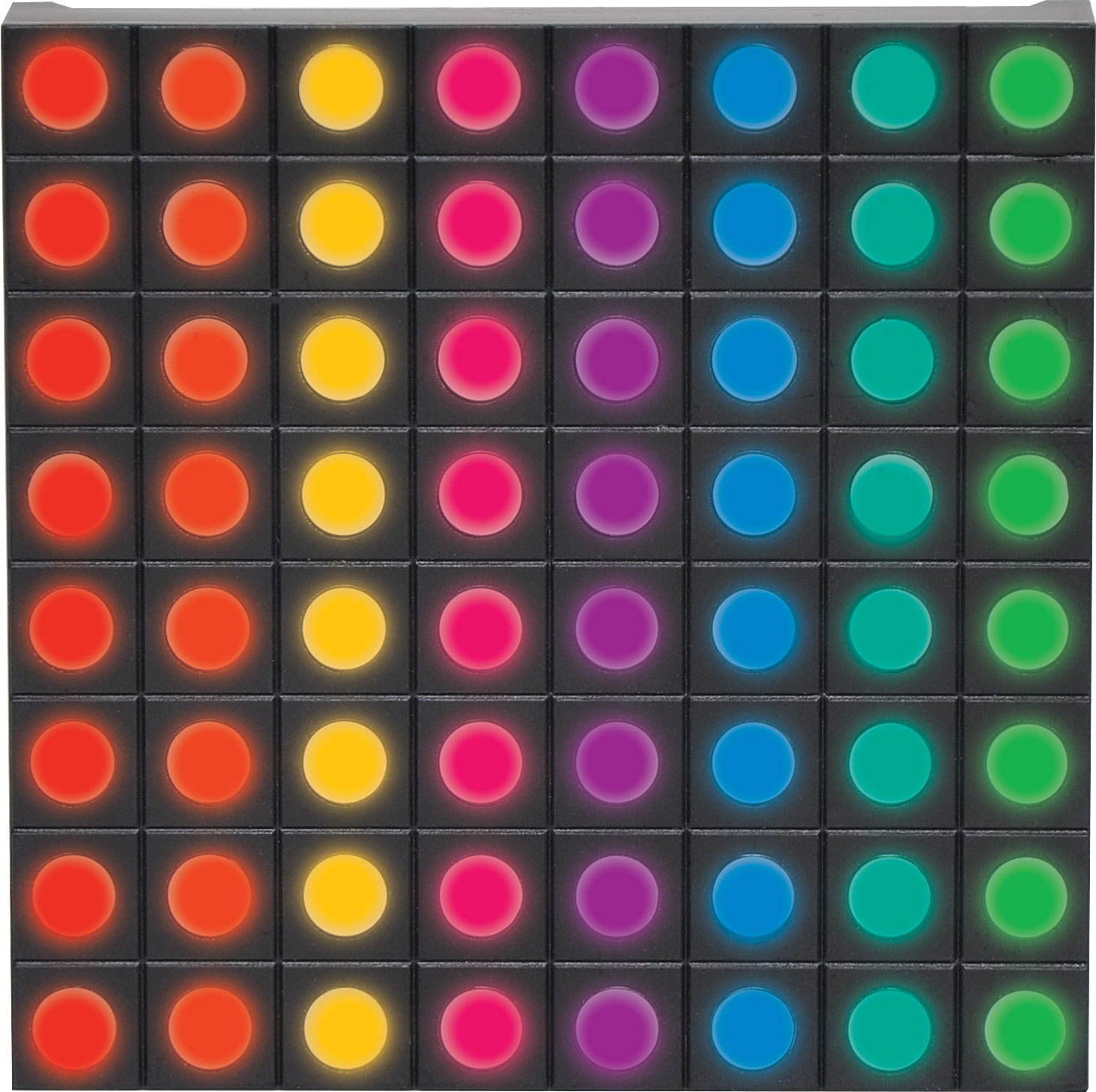

8x8 RGB LED Matrix Display

Be the first to review this product
Designed to mount directly onto a LED Driver module. These modules can be stacked for extended displays.
SKU: Z0977
$18.14
Per ea
QuantityPrice
ea$18.14
2+$16.32
4+$14.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This LED matrix is great for a variety of projects. 64 bright RGB LEDs are contained inside the matte black body, in an 8x8 matrix. There are 32 pins in total, 16 on each side with a small amount of spacing in between so users can easily plug it into a driver module with plenty of space to wire it up. Driver modules can be stacked for extended displays. Dimensions: 60mm x 60mm.



Please Note: We recommend using Z6480 for plug and play programming - please see accessories listed below

Specifications

Type: Common anode

  • Dot Size: 5.0mm
  • Lens Colour: Black facia and clear segments (while OFF)
  • Pulse Forward Current: 60mW
  • Forward Current: 30mA
  • Peak Forward Current: 80mA
  • Reverse Voltage: 5V
  • Reverse Current: 10µA
  • Forward Voltage (typical): R 2.0V, G 3.0V, B 3.0V
  • Forward Voltage (max): R 2.5V, 3.5V, 3.5V
  • Luminous Intensity (typical): R 80mcd, G 200mcd, B 70mcd
  • Luminous Intensity (max): R 100mcd, G 250mcd, B 110mcd
  • Operating Temperature: -40°C to +105°C
  • Pin Row Pitch: 46.4mm
  • Dimensions: 60.5W x 60.5D x 9.2Hmm
