Red 70-150mcd 5mm Flashing LED (10 Pack)

Be the first to review this product

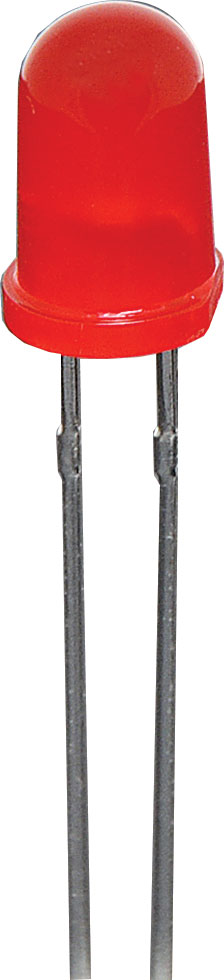

5mm Red Flashing LED
SKU: Z0890A
$1.09
Per ea
QuantityPrice
ea$1.09
10+$0.77
100+$0.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Red Flashing LED. Round head with flange.
5mm length
1/8 duty cycle
Max 12V
2.0Hz
620-630nm

Specifications

Emitted Colour: Red

  • Lens Appearance: Red, Diffused
  • Power Consumption: 180mW (typical)
  • Operating Voltage: 3 (min.), 11V (typ.) 12V (max.)
  • Luminous Intensity: 70-150mcd
  • Flash Frequency: 2Hz
  • Peak Forward Current: 100mA (max)
  • Continuous Forward Current: 30mA (max)
  • Reverse Voltage: 5V (max)
  • Reverse Current: 1µA (max)
  • Wave Length: 620nm
  • Beam Angle: 60°

12 Months

We Offer 12 Months for this product
