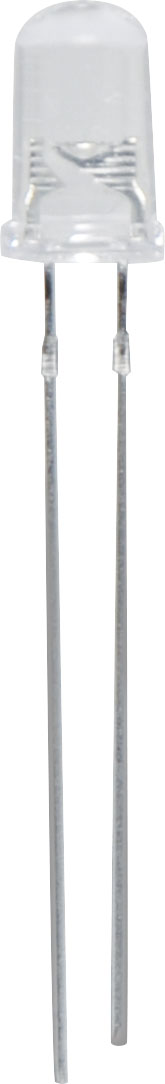

Orange 1800mcd 5mm LED

SKU: Z0870B
5mm Orange LED Hi-Intensity
$0.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $0.86
10+ $0.55
100+ $0.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

5mm. Orange. Hi-Intensity LED.

Specifications

Forward Voltage: 2V - 2.2V

  • Luminous Intensity: 1500-2500mcd
  • Peak Wavelength: 600-605nm
  • Beam Angle: 30°
  • Power Dissipation: 100mW
  • Peak Forward Current: 100mA
  • Continuous Forward Current: 25mA
  • Derating Linear from 30°C: 0.8mA/°C
  • Reverse Voltage: 5V
  • Operating Temperature Range: -20°C ~ +80°C
  • Storage Temperature Range: -30°C ~ +100°C
  • Lead Soldering Temperature (1.6mm from body): 260°C for 5 sec
