Red or Blue 0.6mcd 3mm LED

Be the first to review this product

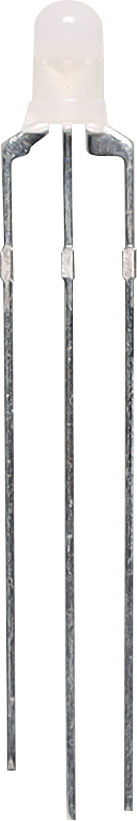

3mm Red & Blue LED
SKU: Z0725
$1.82
Per EACH
QuantityPrice
EACH$1.82
10+$1.64
100+$1.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

3mm Red and Blue White Diffused LED.

Specifications:

Power Dissipation: Red (84mW) and Blue (80mW)

  • Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width): 100mA
  • Continuous Forward Current: Red (35mA) and Blue (20mA)
  • Derating Linear From 50?: 0.4mA°C
  • Reverse Voltage: 5V
  • Electrostatic Discharge (ESD): 1000V
  • Operating Temperature Range: -30? to +80?
  • Storage Temperature Range: -40? to +100?
  • Lead Soldering Temperature [4mm(.157”) From Body]: 255±5? for 5 Seconds
  • Wave Soldering Temperature: Peak Temperature 245?~260? for 10 Seconds

12 Months

We Offer 12 Months for this product
