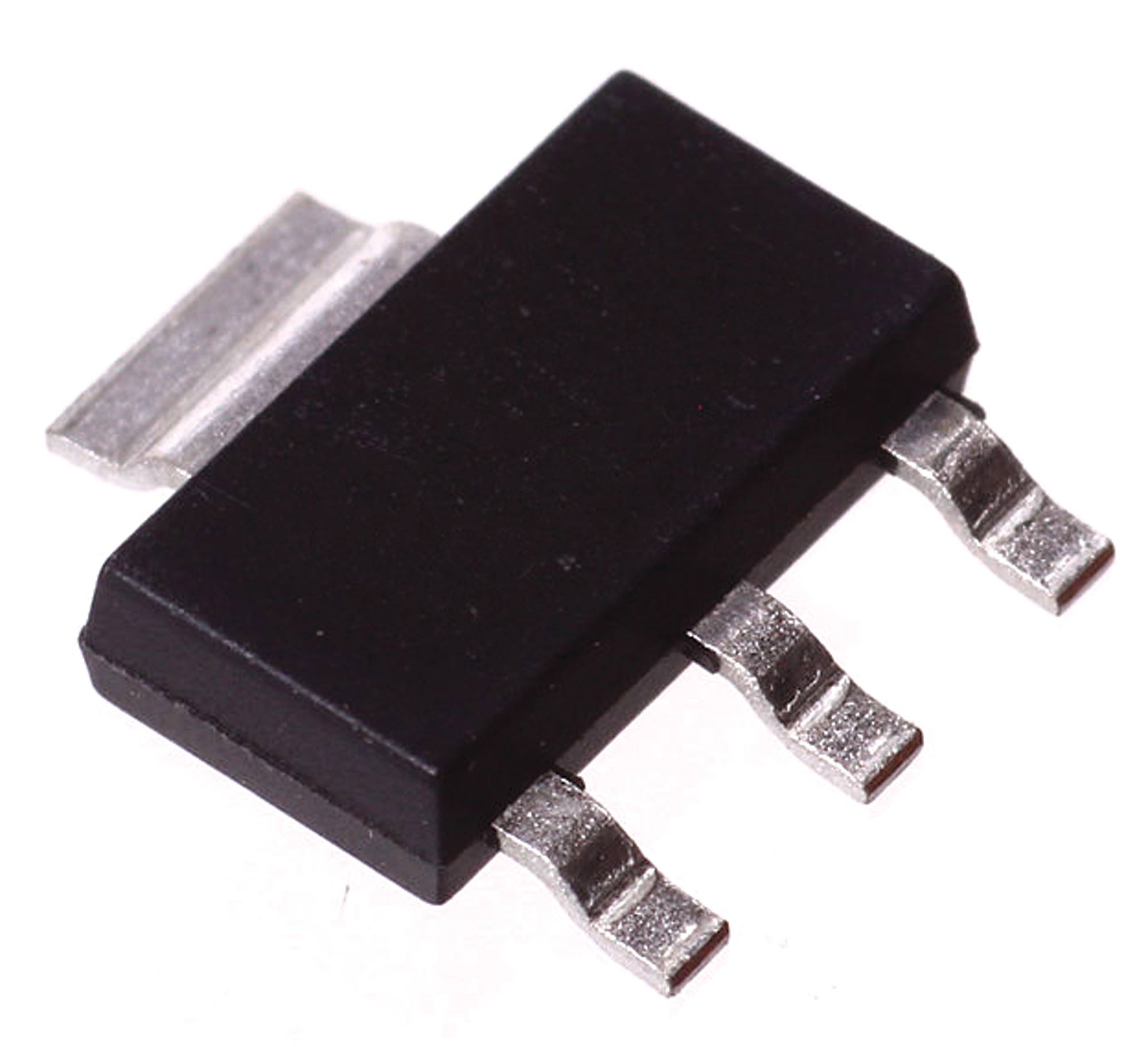

AZ1117H-ADJTRE1 1A Low Dropout Linear Regulator SMD SOT-223

Be the first to review this product
The AZ1117 is a series of low dropout three-terminal regulators with a dropout of 1.15V at 1A output current. The AZ1117 series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 1% for 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V and adjustable versions or 2% for
SKU: Y1880
$1.00
Per ea
QuantityPrice
ea$1.00
10+$0.91
50+$0.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The AZ1117 is a series of low dropout three-terminal regulators with a dropout of 1.25V at 1A output current.

The AZ1117 series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 1% for adjustable versions. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature.

The AZ1117H-ADJTRE1 is an adjustable version, which can provide an output voltage from 1.25V to 5V with only 2 external resistors.

Features:

  • Low Dropout Voltage: 1.25V at 1A Output Current
  • Trimmed Current Limit
  • On-chip Thermal Shutdown
  • Three-terminal Adjustable 1.2-5V
  • Operation Junction Temperature: -40°C to +125°C
  • Totally Lead-Free; RoHS Compliant

Specifications

Output Configuration: Positive

  • Output Type: Adjustable
  • Number of Regulators: 1
  • Voltage - Input (Max): 15V
  • Voltage - Output (Min/Fixed): 1.25V
  • Voltage - Output (Max): 13.75V
  • Voltage Dropout (Max): 1.25V @ 1A
  • Current - Output: 1A
  • Current - Quiescent (Iq): 10 mA
  • PSRR: 75dB (120Hz)
  • Protection Features: Thermal Shutdown
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223-3

12 Months

We Offer 12 Months for this product
