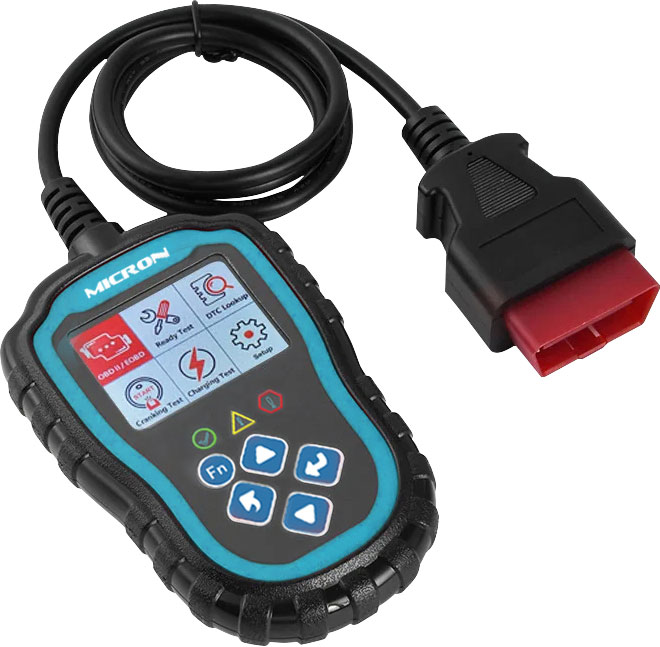

OBDII Scanner Diagnostic Tool

Manufacturer: Micron
Be the first to review this product
This OBDII code reader is used to check engines of all vehicles that comply with OBD II, 12V voltage with standardized 16-Pin connector. This OBDII scanner tool provides a complete solution for reading vehicle data on OBDII equipped vehicles.
SKU: X6017
$90.86
Per ea
QuantityPrice
ea$90.86
2+$81.77
4+$72.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This OBDII code reader is used to check engines of all vehicles that comply with OBD II, 12V voltage with standardized 16-Pin connector. This OBDII scanner tool provides a complete solution for reading vehicle data on OBDII equipped vehicles. It detects general and vehicle specific codes and provides in depth diagnostics for system parameters. It can also provide testing of the vehicle battery charging system and cranking battery test.

Features:

  • Reads trouble codes on most vehicles
  • Displays general and vehicle specific codes
  • View vehicle information
  • View real-time data streams
  • An essential automotive diagnostic tool

pic
pic
pic
pic

Specifications

Support data stream type: 249

  • Fault code analysis number: 16929
  • Operating voltage: 8V to 25V
  • Operating current: 52mA (Max)
  • Operating temperature: -20°C to 70°C
  • Storage Temperature: -30°C to 80°C
  • Display: 2.4” TFT Colour Screen
  • Dimensions: (L)132 x (W)85 x (H)22mm

Supports OBDII protocols:

  • 1. SAE J1850 VPW
  • 2. ISO 9141-2
  • 3. ISO 14230-4 (KWP 5BAUD)
  • 4. ISO 15765-4 (CAN 11/500)
  • 5. ISO 15765-4 (CAN 29/500)
  • 6. SAE J1850 PWM
  • 7. ISO 14230-4 (KWP FAST)
  • 8. ISO 15765-4 (CAN 11/250)
  • 9. ISO 15765-4 (CAN 29/250)

12 Months

We Offer 12 Months for this product
