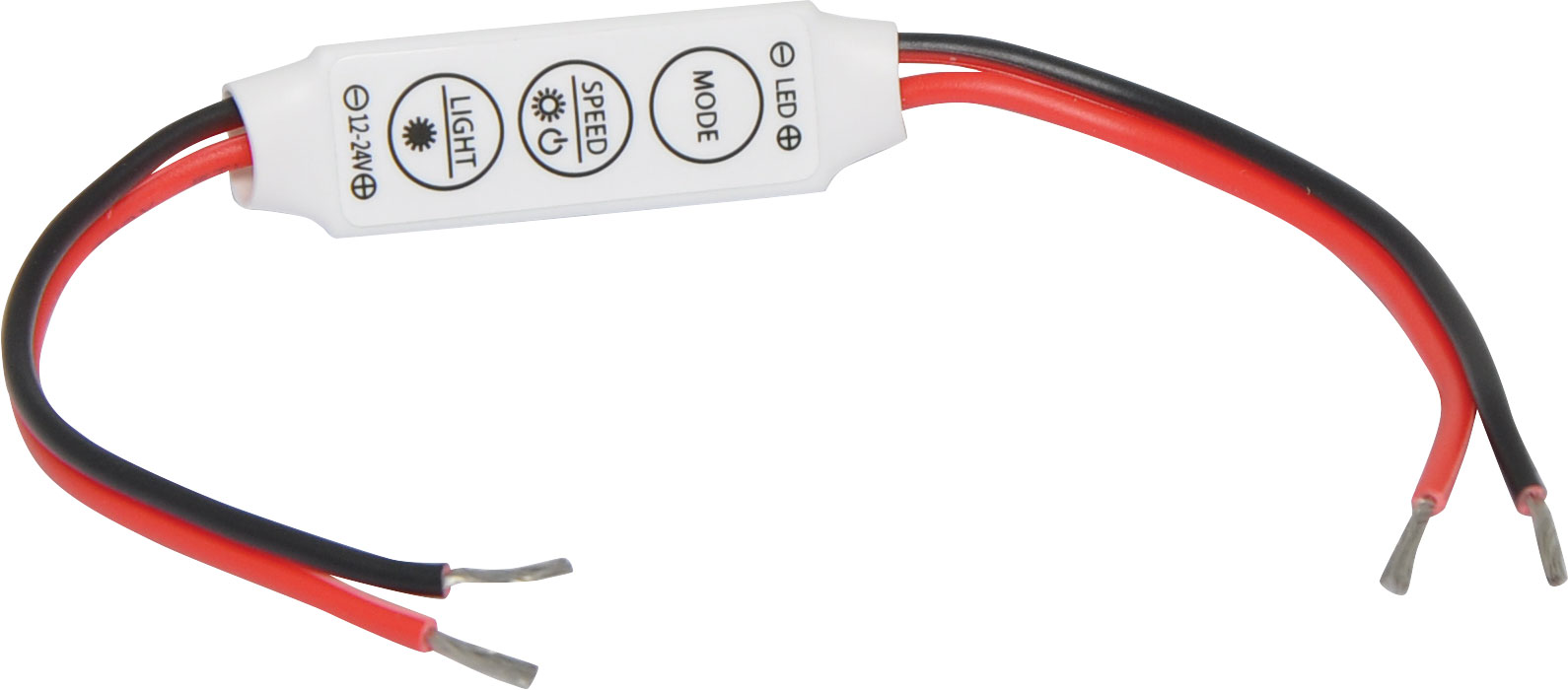

12 Volt LED Strip Light Inline Controller

Manufacturer: Genlamp
Be the first to review this product
Inline LED strip light dimmer for use with SMD 3528, 5050, 5630 strip lighting.
SKU: X3230
$10.45
Per ea
QuantityPrice
ea$10.45
4+$9.55
6+$8.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This inline LED strip light dimmer is suitable for use with our single colour 3528 and 5050 type SMD single colour strip lighting. It includes an ON/OFF switch, FLASH, FADE and SPEED modes. The speed and brightness button has a dual function. It can change the speed of the modes (5 speeds) and the brightness (8 levels). It can also turn the lights ''ON'' and ''OFF''. Simply press the button for 3 seconds and it will turn the lights ''OFF''.

Specifications

Electrical

  • Working Voltage: DC 12~24V
  • Max Output Current: 12A
  • Max Output Power: 144W
  • Operating Temperature: -30°C~+75°C
  • Dimension: 42x12x3 (mm)

Functions of Keys

  • Key MODE: Switch to dynamic mode.
  • Key LIGHT: Switch to static light mode.
  • Key SPEED / BRIGHT: Adjust speed or brightness.

Operations

  • Press MODE key to switch among 5 dynamic modes,
  • Press LIGHT key to switch to static light mode,
  • Press SPEED/ BRIGHT key to change speed among 5 levels when at dynamic mode,
  • When at light mode, press SPEED/BRIGHT key to change light brightness among 8 levels.
  • Resume function. The previous settings will be resumed while power on again.





12 Months

We Offer 12 Months for this product
