5050 Addressable RGB Magic LED Strip Light 5m

Manufacturer: Genlamp
Be the first to review this product

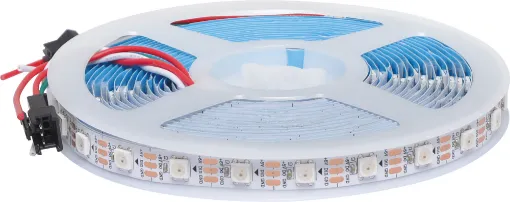

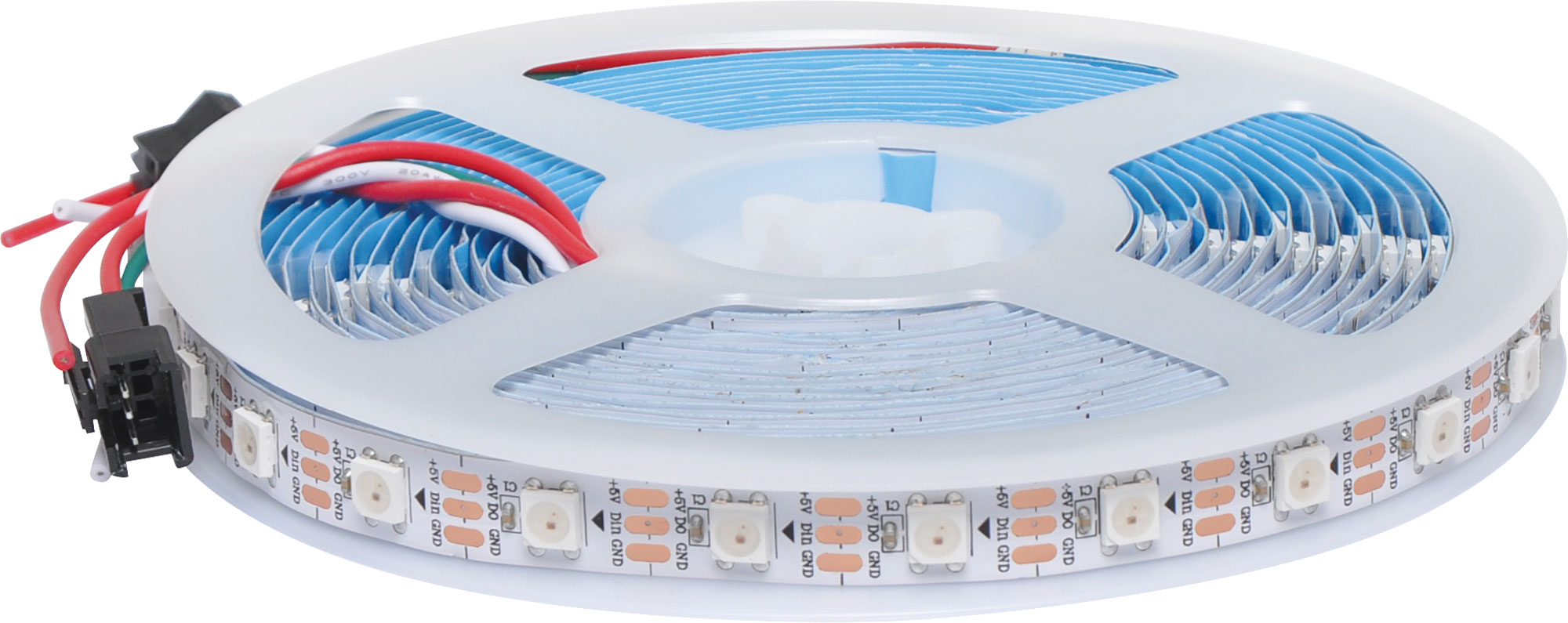

5m reel of addressable RGB 5050 LED strip - this means you can program the colour of every individual LED using an Arduino/Raspberry Pi.
SKU: X3223A
$104.55
Per ea
QuantityPrice
ea$104.55
3+$94.09
5+$83.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This decorative WS2812B RGB LED strip features on-board chips to control the colour of each individual LED using open source platforms such as Arduino and Raspberry Pi. This allows for it to be controlled individually, which makes it ideal for programming and producing dynamic and creative effects. 60 LEDs per metre. 5V DC input. Indoor use only (not weatherproof).

Power Supply Requirements
LED strips can require quite powerful power supplies. This strip lighting utilises RGB LEDs which can have varying current requirements depending on the brightness and colour the LED is displaying. Whilst the specification listed is an absolute maximum, we recommend 6 to 8A power supply for a full 5m reel.

Sold per 5m roll.

Features

  • WS2812B on board controller chip
  • Controllable with Arduino or Raspberry Pi
  • 60 LEDs per metre
  • Ideal for creative lighting effects, Christmas lighting etc.
  • 10mm profile width, works with aluminium profiles (such as X3249/52)

Specifications

Chip: WS2812B

  • Voltage: DC 5V
  • Typical Current Draw: 1.6-2.2A per metre (will vary with brightness/color).
  • IC Type: Internal sealing type
  • Maximum working current: 0.06A per LED
  • LED Chip: SMD5050 RGB
  • Width:10mm
  • Package: 5m/Roll
  • Connector: 3pin connector
  • LED Quantity: 60 LEDs/M

12 Months

We Offer 12 Months for this product
