Unit Controller And Infra Red Remote For X3216A

Manufacturer: Genlamp
Be the first to review this product
Designed to work in conjunction with X3216A strip lighting.
SKU: X3219A
$25.68
Per ea
Quantity Price
ea $25.68
2+ $23.41
4+ $21.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Remote control offering selectable colours, adjustable brightness, speed of colour change and 4 effects (flash ,strobe, fade and smooth transition.) Designed to work in conjunction with X3216A strip lighting. Maximum current 6A (equates to approx. 14m of strip lighting per controller). 2.1mm DC jack power input.

Remote uses CR2025 battery.

Note: if strip lights up green when powering up, swap the controller to the other end of the LED strip and retest.

Specifications

Performance Parameters

  • Working Temperature: -20 to 60°C
  • Supply Voltage: 5-24V DC
  • Output: Set of SPI signals
  • Working Current: <60mA
  • Effect Mode: 358 kinds
  • Max Number of Control Points: 2048 pixels

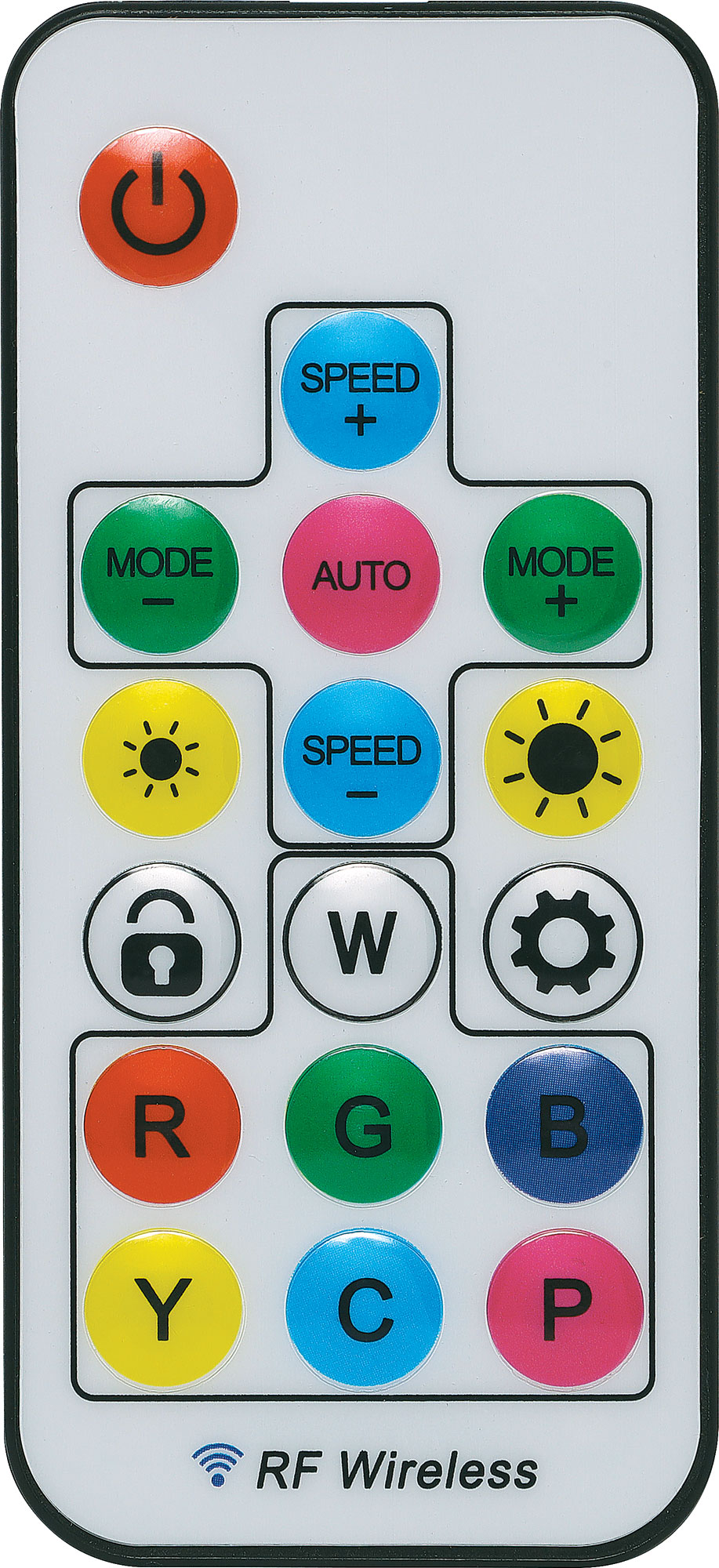

Remote Control

  • Power Source: 1 x CR2025 lithium coin cell battery
  • RF Signal: Infra-Red
  • Weight: 25g
  • Dimensions: 90L x 45W x 9H mm
