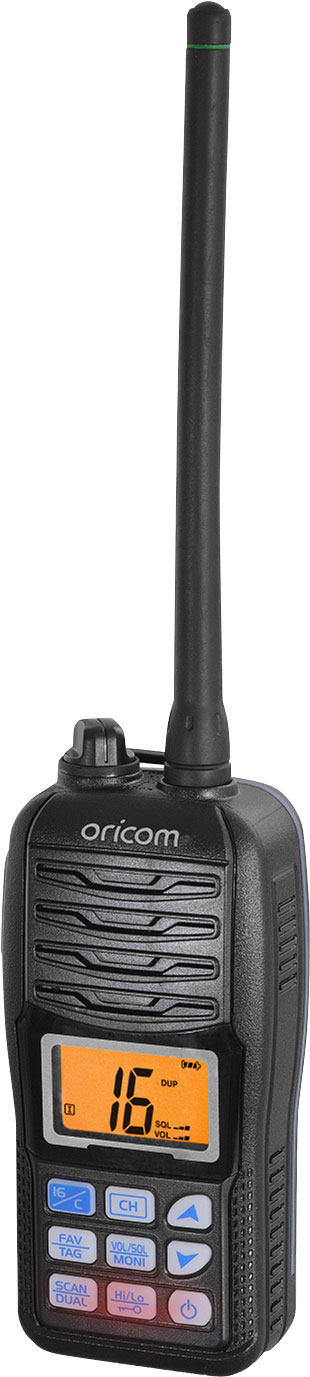

MX500 5W High Power VHF IP67 Marine Transceiver

Manufacturer: Oricom
SKU: X0660
An essential part of your safety kit the MX500 is a high performance radio, built tough to withstand the harshest marine environments. It is waterproof to IP67 if dropped overboard. It will not only float, but the radio will flash ensuring easy retrieval.
Save $35.45 $163.64 $199.09

All Prices Shown are (ex GST)
Bulk Pricing
ea
$163.64 $199.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

An essential part of your safety kit the MX500 is a high performance radio, built tough to withstand the harshest marine environments. With its rating of IP67, not only is the radio waterproof but it will also float if dropped overboard. If this happens the radio will flash ensuring easy retrieval.

Please Note: The included AC adaptor is not waterproof

In The Box
• VHF marine radio
• AC adaptor
• Rechargable li-ion battery
• Belt clip
• Flexible antenna
• Wrist strap

Features

  • IP67 waterproof (1 meter depth for 30 minutes)
  • Float and flash
  • Vibration water draining function
  • Dual/tri-watch
  • 5/1 watt switchable
  • Large backlit display
  • Programmable and priority scan
  • Keypad lock
  • Battery indicator
  • Operating time up to 8hrs

Specifications

General

  • Frequency range: TX: 156.000-161.450MHz, RX: 156.000-163.425MHz
  • Type of emissions: 16K0G3E (FM)
  • Power supply voltage: 3.7V DC nominal
  • Battery pack: 1500mAh Li-ion (DC 3.7V) Operating time up to 8hrs. Duty cycle; 5% transmit, 5% receive & 90% standby
  • Frequency stability: ±10 PPM
  • Operating temperature range: -15°C to 55 °C
  • Antenna impedance: 50Ω
  • Dimensions (without antenna): 65W × 140H × 41Dmm
  • Weight: 247g (With Belt Clip and Antenna)

Transmitter

  • Output power: 5W/1W switchable power
  • Max. frequency deviation: ±5.0kHz
  • Adjacent channel power: =70dB
  • Residual modulation: =40dB

Receiver

  • Sensitivity: =0.22µV
  • Squelch sensitivity: =0.22µV
  • Adjacent channel selectivity: =70dB
  • Spurious response: =70dB
  • Intermodulation: =68dB
  • Audio output power: =0.6W (at 10% distortion)
  • Hum and noise: =40dB

Warranty & Returns

2 Years

We Offer 2 Years for this product
