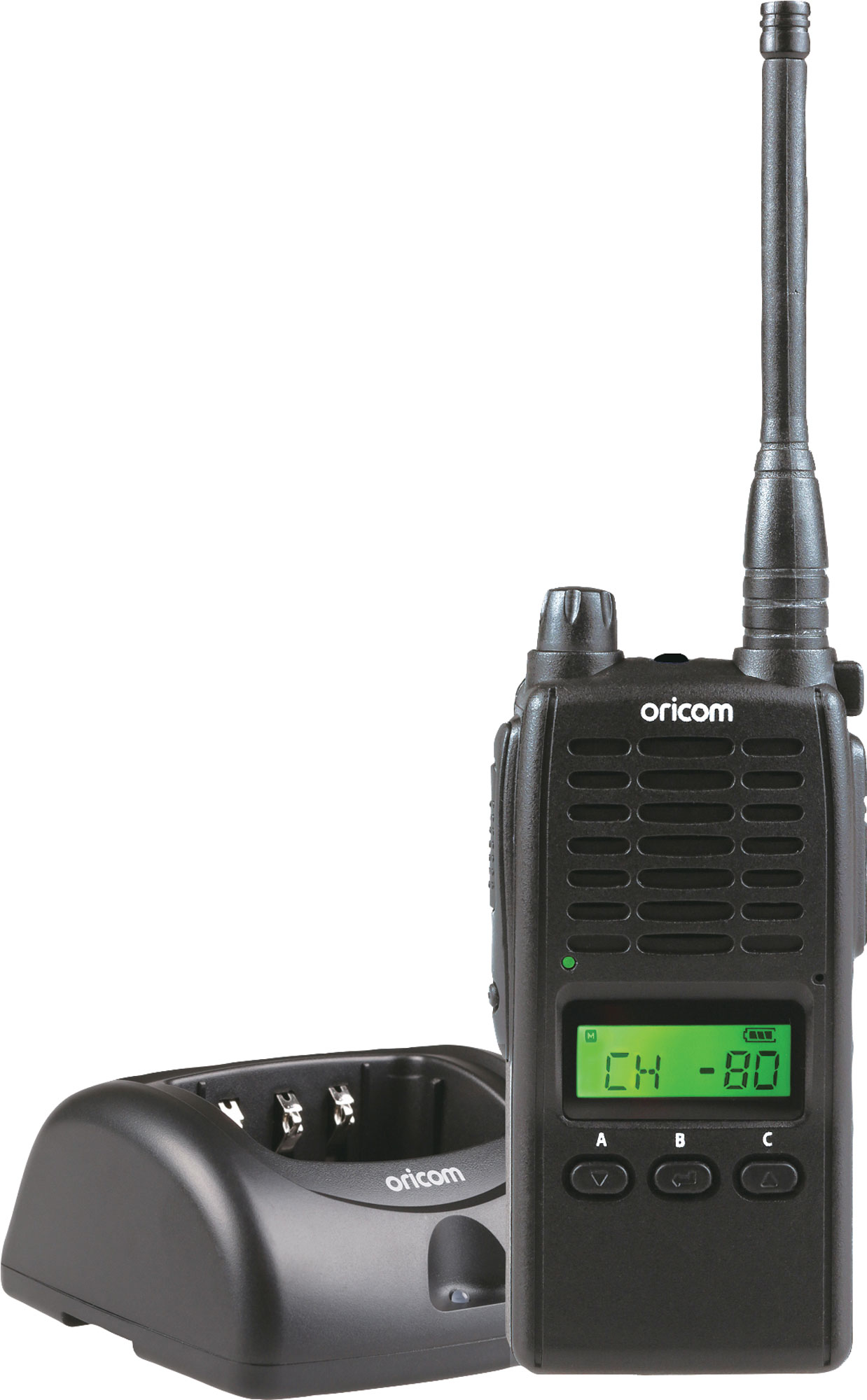

UHF5500-1 80Ch 5W High Power UHF CB Transceiver

Manufacturer: Oricom
SKU: X0575
This quality unit has all the features you would expect to find in a modern UHF transceiver all housed in a rocksolid diecast chassis. Includes charging pod, mains adaptor and high capacity 1800mAH lithium battery.
$199.00

All Prices Shown are (ex GST)
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Engineered to meet professional requirements over greater distances than standard power transmitters. This high power 5W unit features a super sensitive receiver with front end filtering housed in a sturdy diecast chassis for excellent protection from the elements. For close range communications the transmitter can be switched to 1W for increased talk time. Ideal for use on building and industrial sites, event security etc.

Features

  • 5/1 watt RF power Heavy duty
  • Die cast metal chassis
  • Fast charger POD supplied with 240v and 12v adaptors
  • 3 Programmable instant channel buttons
  • 80 Narrowband channels*
  • 38 CTCSS & 104 DCS Privacy codes
  • Duplex
  • Rugged construction
  • Channel scan (instant/memory/priority)
  • Backlit LCD display
  • Rotary volume control
  • Signal monitoring
  • Keypad lock
  • Calling tone
  • Power save mode
  • Removable flexible antenna
  • 2.5mm jack for optional headset or speaker mic

Specifications

Compliance: AS/NZS 4365:2011 and NZS2772.1

  • Frequency Range: TX/RX 476.425 - 477.4125 MHz
  • Number of Channels: 80 UHF CB
  • Channel Spacing: TX/RX 12.5KHz
  • Channel Spacing: RX 12.5KHz
  • Operating modes: Simplex, Duplex
  • Scanning Speed: 125msec/per channel
  • Antenna Impeadance: 50 Ohm
  • Battery Capacity: 7.4V, 1800mAh, Li-ion Battery
  • Frequency Stability: +/- 2.5ppm

Transmitter

  • RF Output Power: 5 Watts max.
  • Modulation: FM
  • Maximum Deviation: +/- 2.5KHz
  • Spurious Emissions: Less than -30dBm
  • Tx Frequency Response: +1 to -3dB of 6dB/octave from 300Hz to 3000Hz
  • Audio Signal to Noise Ratio: more than 35dB

Reciever

  • Circuit Type: Dual conversion superheterodyne
  • Intermediate Frequencies: 1''st IF = 21.4MHz, 2''nd IF = 450KHz
  • Sensitivity: less than -118dBm at 12dB SINAD
  • Selectivity: more than 70dB
  • Intermodulation Immunity: more than 70dB
  • Spurious Response Immunity: more than 60dB at IF/2
  • Audio Signal to Noise Ratio: More than 35dB
  • Receive Frequncy Response: +1 to -3dB of 6dB/octave from 300Hz
