DTX4300PK 80Ch 5W UHF Dash Transceiver

Manufacturer: Oricom
Be the first to review this product
A 5W dash mount 80 channel transceiver equipped with a host of modern features and a range of up to 10km. Includes a complete set of accessories: handheld mic, cradle, antenna and mounting bracket. DTX4300PK
SKU: X0562
$253.64 $231.82
Per ea
Save $21.82
Quantity Price
ea $253.64 $231.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

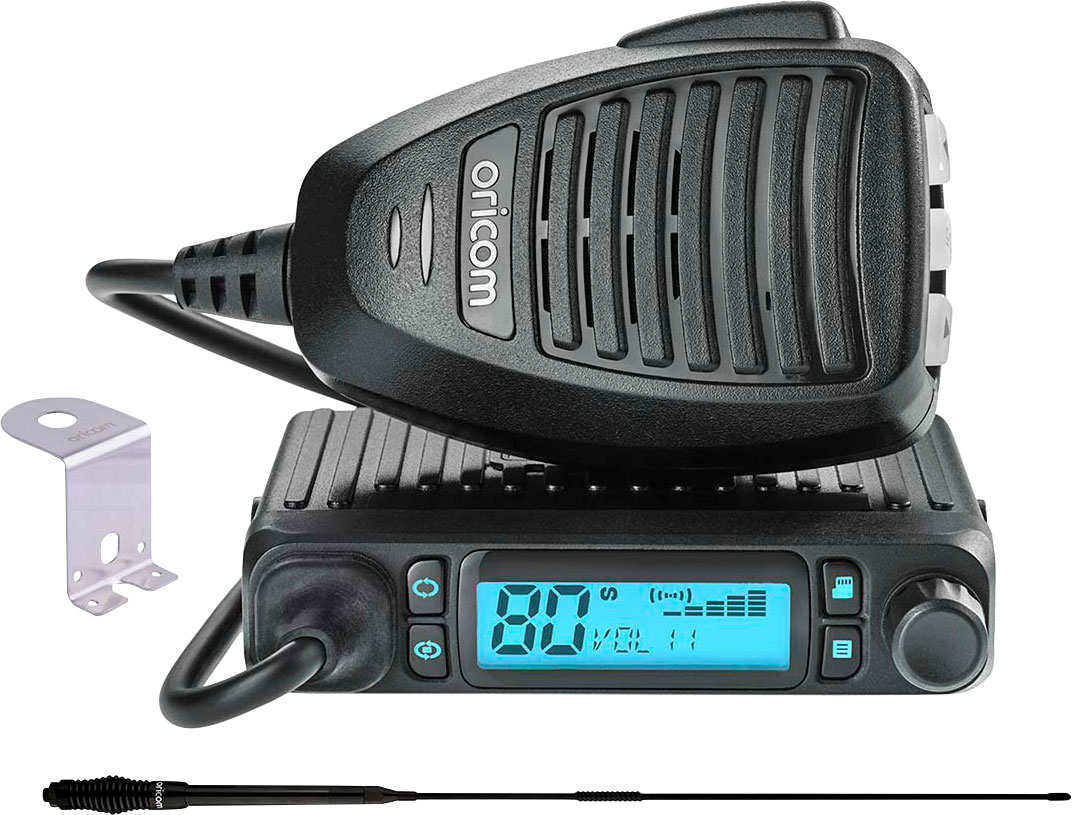

A 5W dash mount 80 channel transceiver equipped with a host of modern features and a range of up to 10km. Includes a complete set of accessories: handheld mic, cradle, antenna and mounting bracket. This amazingly compact design is only 76W x 100D x 22Hmm.

Pack Includes
1x Premium UHF CB Radio (DTX4300)
1x Heavy Duty Microphone (MIC110)
1x Microphone mounting bracket
1x Transceiver mounting bracket
1x 6.5dBi Antenna (ANU220)
1x Antenna Mounting Bracket (BR100)
1x Pack of supplied mounting screws
1x User Guide

Features

  • 5W RF power
  • 80 channels
  • Flip LCD function
  • Automatic level control (ALC)
  • Heavy-duty microphone with volume control
  • CTCSS & DCS
  • 7 colour backlit display
  • Duplex (range extender)
  • Open/group scan
  • Priority channel
  • Rotary channel select
  • Digital squelch control
  • Busy channel lockout

Specifications

General

  • Compliance: AS/NZS 4365:2011
  • Frequency Range TX/RX: 476.425 - 477.4125 MHz
  • Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
  • Channel Spacing TX/RX: 12.5KHz
  • Operating modes: Simplex, Repeater TX offset (+750KHz)
  • Scanning Speed: 50 msec per channel
  • Antenna Impedance: 50 Ohms
  • Operating Volts nominal: 13.8V DC
  • Operating Volts Range: 10 to 16 VDC
  • Over Voltage Protection: Diode and Voltage regulator system
  • Over Current Protection: 2 AMP fuse
  • Reverse Polarity Protection: Shunt diode
  • Frequency stability: +/- 5 ppm

Transmitter

  • RF Output Power: 5 watts max
  • Modulation: F3E(FM)
  • Maximum deviation: 2.5KHz
  • Spurious Emissions: <-30dBm
  • TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
  • Current consumption during TX: 1.7 AMP with 50 ohm antenna termination

Receiver

  • Circuit Type: Dual conversion superheterodyne
  • Intermediate Frequencies: 1st IF = 21.4MHz , 2nd IF = 450kHz
  • Maximum useable sensitivity: -123dBm for 12dB SINAD
  • Audio output power: 2 Watts at 8 ohm load
  • RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz

Mechanical

  • Dimensions: 22.5 (d) x 100 (w) x 76 (h) mm
  • Weight: 210g transceiver only

5 Years

We Offer 5 Years for this product
