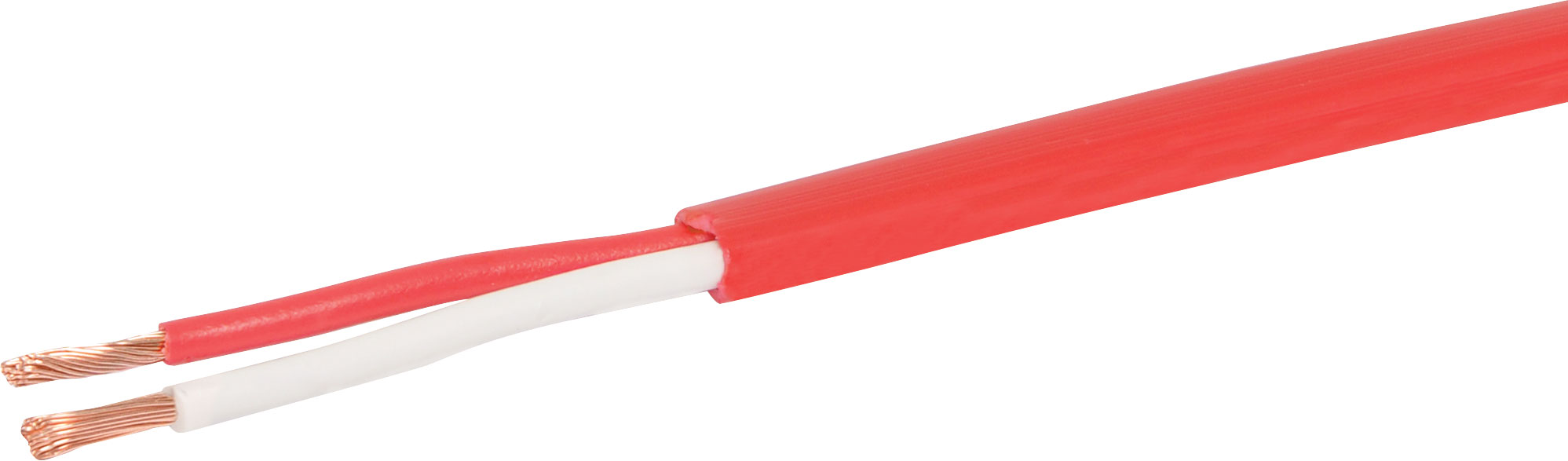

18AWG Electrafire Red Double Insulated Fire Cable (100 Roll)

Be the first to review this product
Approved fire cable for use in evac systems, detection and alarm systems. V75 PVC jacket.
SKU: WC2148
$1.27
Per m
QuantityPrice
m$1.27
100+$0.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Approved fire cable for use in evacuation systems, detection and alarm systems. V75 PVC jacket.

Specifications

Size: 7/0.37

  • Insulation material: PVC - V75 PVC
  • Conductor Area: 0.75mm2
  • Insulation: 0.6mm
  • Sheath: 0.8mm
  • Nominal OD mm ( +/– 10% ): 3.9 x 6.2
  • Max current: 8A
  • DC resistance*: 25.3
  • Roll Size: 100m

* Measured @ 20°C O/km

    Construction

    • Conductors: Plain Stranded Annealed Copper Wire (AS / NZS 1125)
    • Insulation: PVC V75 or Low Smoke Zero Halogen
    • Sheath: PVC V75 or Low Smoke Zero Halogen
    • Voltage Rating: 250 / 250V Low Voltage
    • Operating Temperature: -15°C to 75°C
    • Insulation Colours: Red, White
    • Sheath Colour: Red

    12 Months

    We Offer 12 Months for this product
