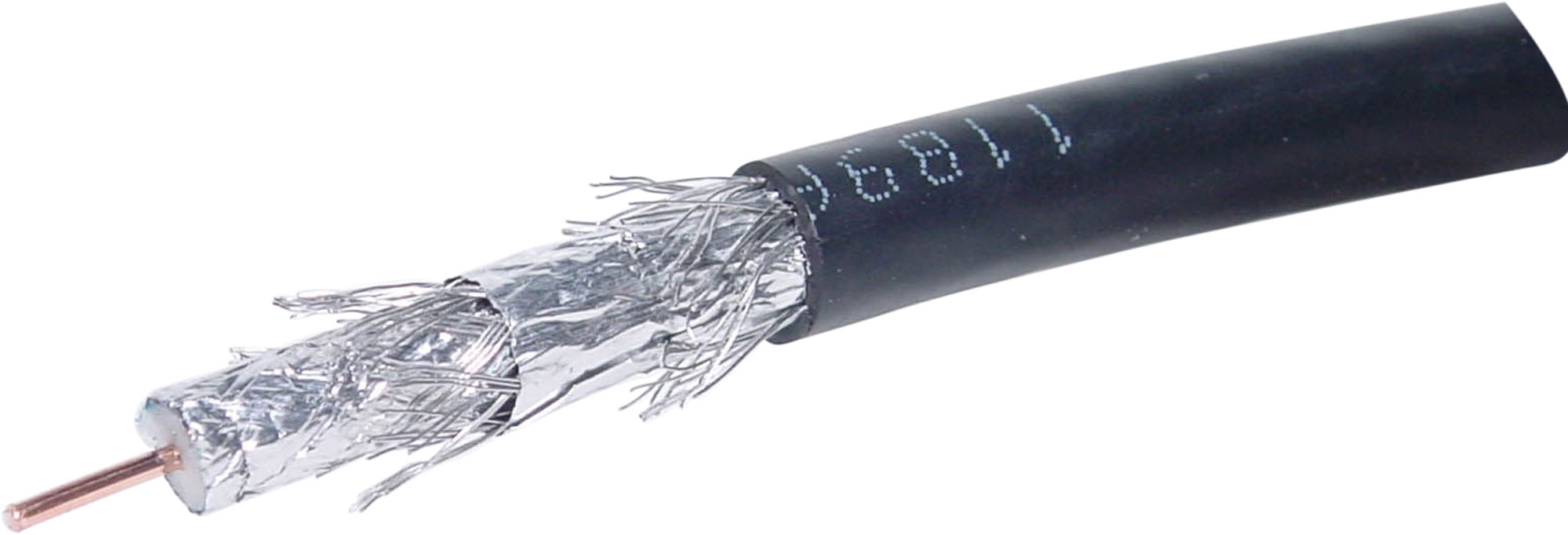

RG6/U 75 Ohm Quad Screen Foxtel Coaxial Cable

Be the first to review this product
Foxtel & Austar Approved - Made to stringent high quality standards Outside diameter: 7.54mm
SKU: W5004A
$2.27
Per m
QuantityPrice
m$2.27
100+$2.05
200+$1.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Made to stringent quality standards. Approved for Foxtel installs (F10129).

Cross Section

Specifications

Foxtel Approved - Made to stringent high quality standards

  • Jonsa-Ellies Part Number: CRG6UBQ
  • Approval No: F10129

Centre Conductor

  • Copper clad steel wire: 1/1.02
  • Diametre: 1.02mm (AWG18)

Dielectric

  • Material: Foamed HD Polyethylene
  • Diameter: 4.57mm

Laminating Shielding Tape

  • Material: Bonded laminated aluminium foil
  • Thickness: 60 microns

Core Diameter

  • LST + Dielectric: 4.78mm

Inner Braid

  • Material: Aluminium alloy wires
  • Minimum braid coverage: 60%

Laminating Shielding Tape

  • Material: Laminated aluminium foil
  • Thickness: 60 microns

Outer Braid

  • Material: Aluminium alloy wires
  • Minimum braid coverage: 40%

Sheath

  • Material: PVC
  • Thickness: 0.86mm
  • Overall diameter: 7.54mm
