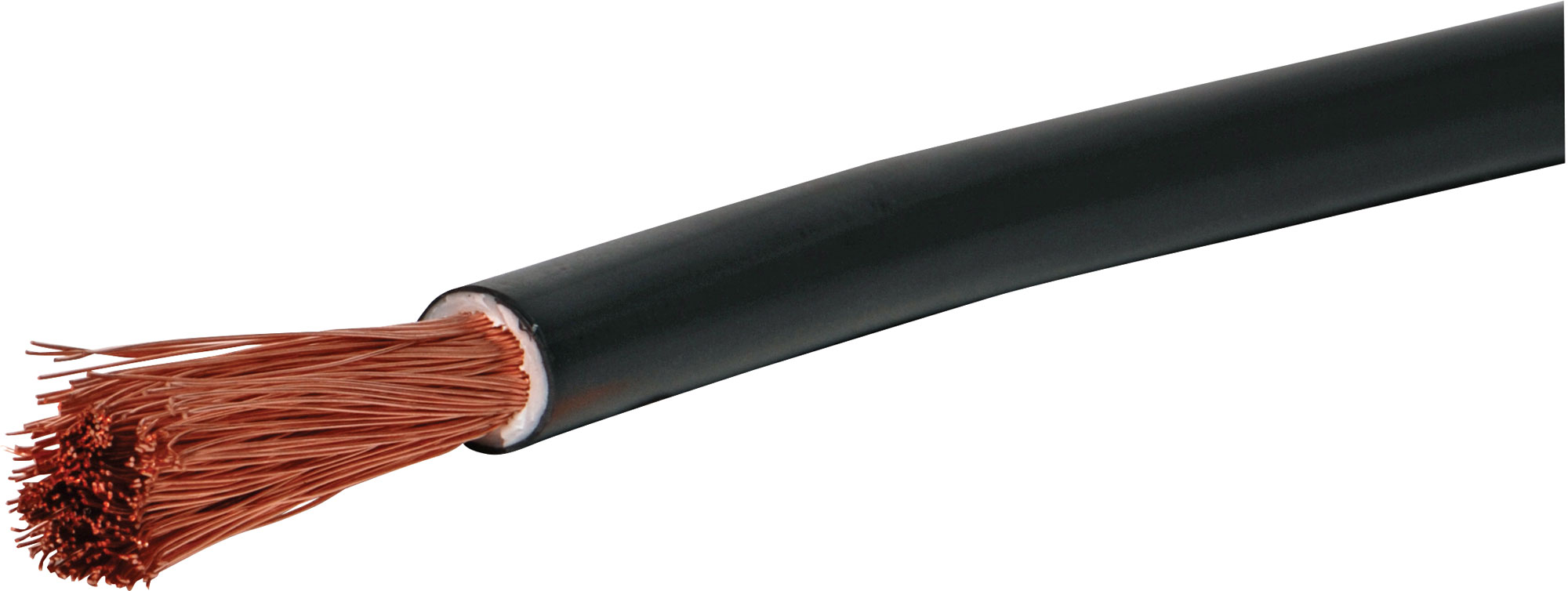

8AWG 90A Black Power Cable

Be the first to review this product
High current capacity for automotive, 4WD, wiring etc. 90A rated.
SKU: W4218A
$7.45
Per m
QuantityPrice
m$7.45
10+$6.73
30+$5.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This high current capacity cable is suitable for connection between battery banks and inverters.

Specifications

Conductor

  • Material: Bare Copper
  • AWG: 8.41mm2 × 1C (8AWG)
  • Construction: 119/0.30mm±0.01mm
  • Stranded Diameter: 4.36mm

Jacket

  • Material: PVC
  • Average Thickness: 0.82mm
  • Cable Diameter: 6.0±0.15mm
  • Jacket Colour: Red Transparent

Physical and Electrical Characteristics

  • Rated Voltage: 300V DC
  • Rated Temperature: 90°C
  • Rated Current: 90 Amps
  • Maximum DC Resistance: 0.00220M Ω
  • Tensile Strength: =10.3 Mpa (Insulation and Jacket)
  • Elongation: =100% upward (Insulation)
  • Dielectric Strength: 2kV/min (Insulation in water)

12 Months

We Offer 12 Months for this product
