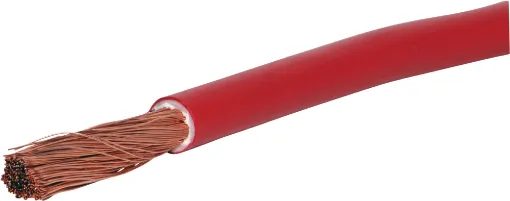

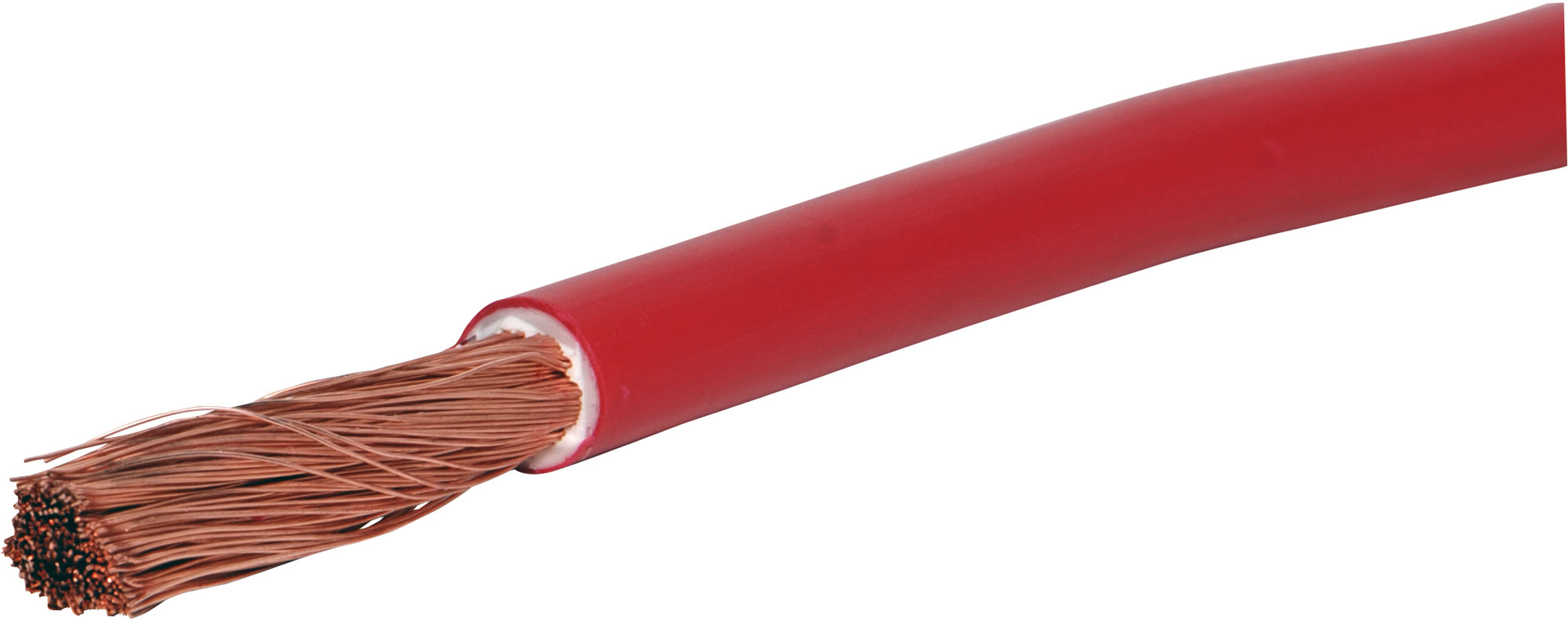

4AWG 152A Red Power Cable (30 Roll)

SKU: W4206A
High current capacity suitable for connection between battery banks and inverters.
$11.77

All Prices Shown are (ex GST)
Bulk Pricing
m $11.77
10+ $10.45
30+ $9.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This high current capacity cable is suitable for connection between battery banks and inverters.

Specifications

Conductor

  • Material: Bare Copper
  • AWG: 20.20mm2 × 1C (4AWG)
  • Construction: 287/0.30mm±0.01mm
  • Stranded Diameter: 6.77mm

Jacket

  • Material: PVC
  • Average Thickness: 0.69mm
  • Cable Diameter: 8.15±0.15mm
  • Jacket Colour: Inside White, Outside Red

Physical and Electrical Characteristics

  • Rated Voltage: 300V DC
  • Rated Temperature: 90°C
  • Rated Current: 152 Amps
  • Maximum DC Resistance: 0.00091M Ω
  • Tensile Strength: =10.3 Mpa (Insulation and Jacket)
  • Elongation: =100% upward (Insulation)
  • Dielectric Strength: 2kV/min (Insulation in water)

Warranty & Returns

12 Months

We Offer 12 Months for this product
