8AWG Double Insulated Heavy Duty Figure 8 Cable (100 Roll)

SKU: W4162
This 112/0.30 Double Insulated Heavy Duty Figure 8 Cable is suitable for high current auto and marine power. Double sheath for added protection.
$14.32

All Prices Shown are (ex GST)
Bulk Pricing
m $14.32
100+ $12.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Specifications

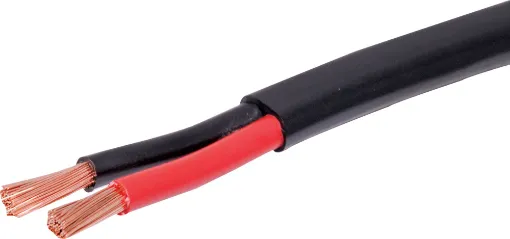

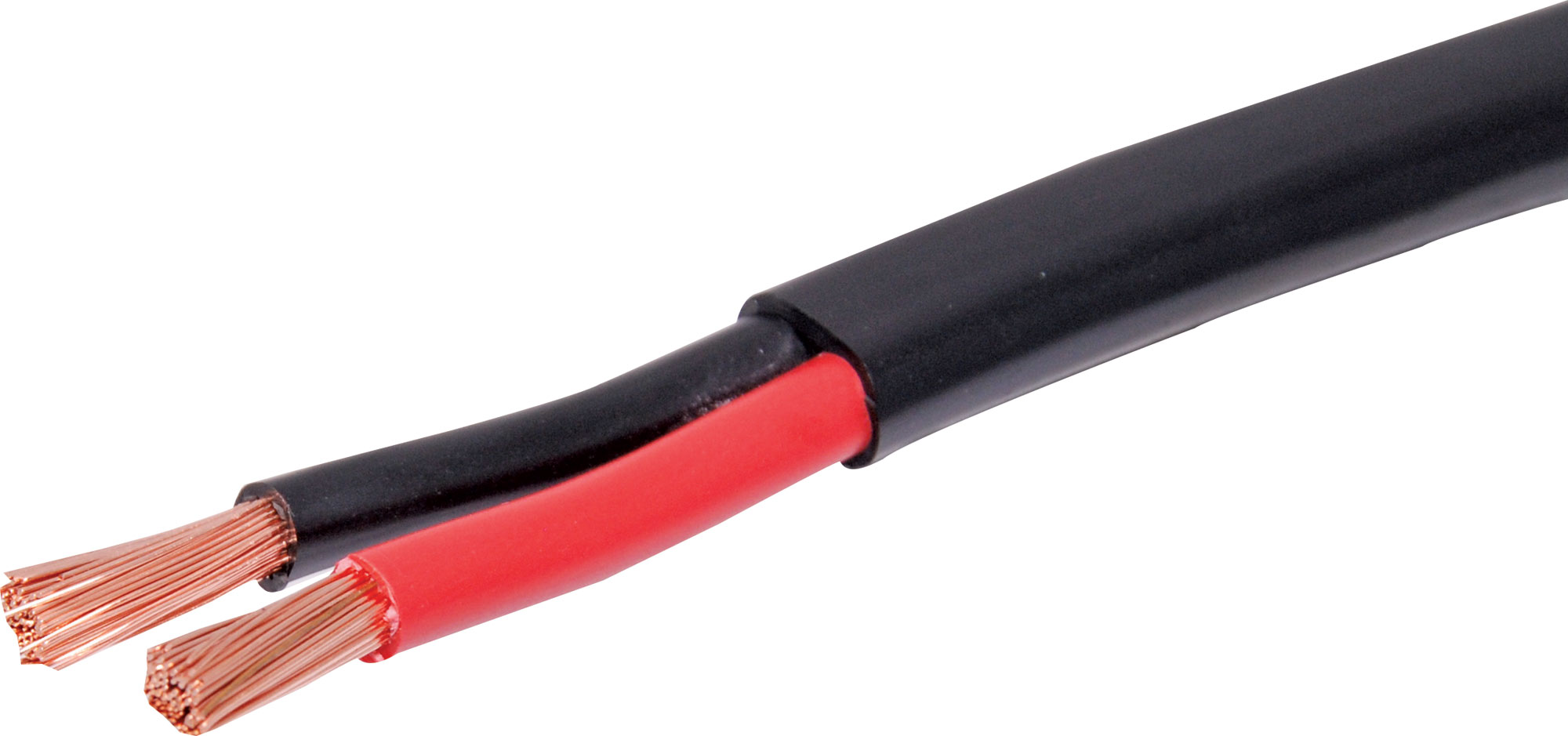

This heavy duty figure 8 cable is ideal for high current auto and marine power and features a double sheath for added protection.

Cross Section

Specifications

Size: 2 x 112/0.30

  • Voltage Rating: 300V AC @ 80A
  • Dimensions: ˜7.6 x 13.2mm
  • Conductor: 8.0mm2 (˜8AWG)
  • Jacket Material: PVC
  • Resistance: 0.0031Ω/m @ 20°C
  • Temperature Rating: 75°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
