12AWG Heavy Duty Automotive Black Figure 8 Cable (100 Roll)

Be the first to review this product

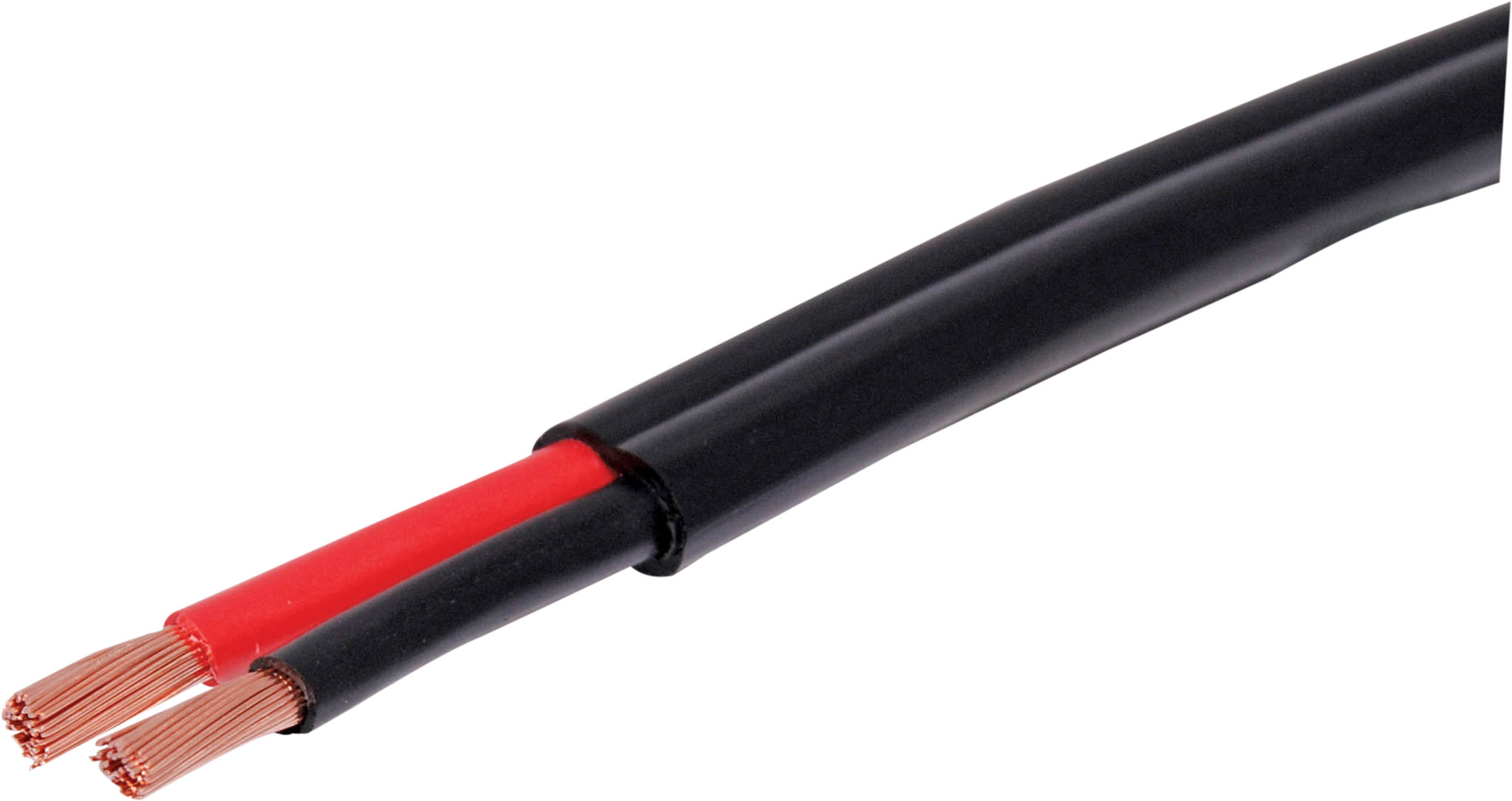

Double PVC insulated twin. Separate conductors with non-bonded sheath.
SKU: W4154
$5.91
Per m
QuantityPrice
m$5.91
100+$4.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Double PVC insulated twin. Separate conductors with non-bonded sheath

Cross Section

Specifications:

Size: 2 x 56/0/30

  • Voltage Rating: 300V AC
  • Current Rating: 20Amps
  • Outside Dimensions: ˜5.6 x 9.2mm
  • Conductor Area: 4.0mm2
  • Conductor Gauge: ˜12AWG
  • Temperature Rating: 75°C
  • Roll Size: 100m

12 Months

We Offer 12 Months for this product
