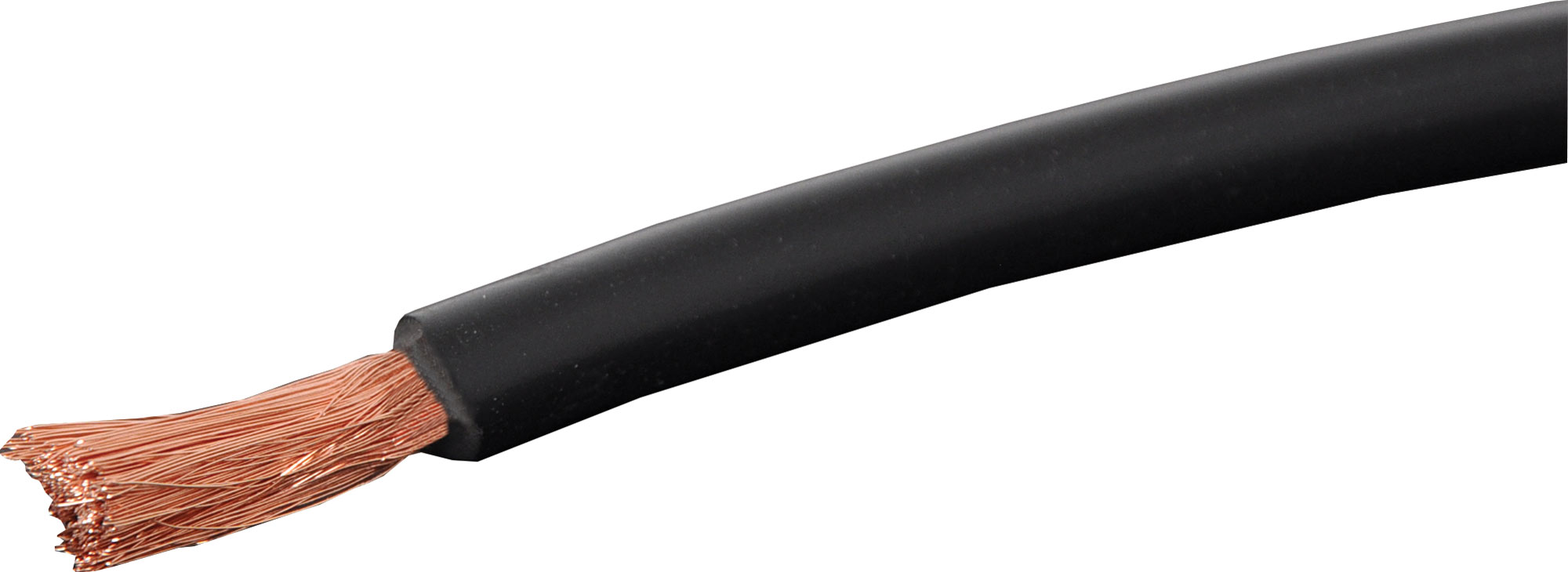

8AWG 78A Black Power Cable (50 Roll)

Be the first to review this product
High power handling cable for distributing power.
SKU: W4102
$6.18
Per m
QuantityPrice
m$6.18
10+$5.09
50+$4.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

High power handling cable for distributing power. Commonly used as power cable for car stereo systems, where high current handling is crucial for powerful, clean sound.

Specifications

Conductor

  • Material: Oxygen Free Copper
  • AWG: 7.12mm2 × 1C (8AWG)
  • Construction: 630/0.12mm±0.008mm
  • Stranded Diameter: 4.01mm

Jacket

  • Material: PVC
  • Average Thickness: 1.25mm
  • Cable Diameter: 6.5±0.1mm
  • Jacket Colour: Black Transparent

Physical and Electrical Characteristics

  • Rated Voltage: 300V DC
  • Rated Temperature: 105°C
  • Rated Current: 78 Amps
  • Maximum DC Resistance: 0.00259M Ω
  • Tensile Strength: =10.3 Mpa (Insulation and Jacket)
  • Elongation: =100% upward (Insulation)
  • Dielectric Strength: 2kV/min (Insulation in water)

12 Months

We Offer 12 Months for this product
