Shielded Twin Pair Audio/Data Cable (100 Roll)

Be the first to review this product
Each pair individually shielded with aluminium mylar shield plus single drain wire. Conductor colours: Pair 1: Black & Red Pair 2: Green & White
SKU: W3032
$1.82
Per m
QuantityPrice
m$1.82
100+$1.64
200+$1.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Each pair individually shielded with aluminium mylar shield plus single drain wire.

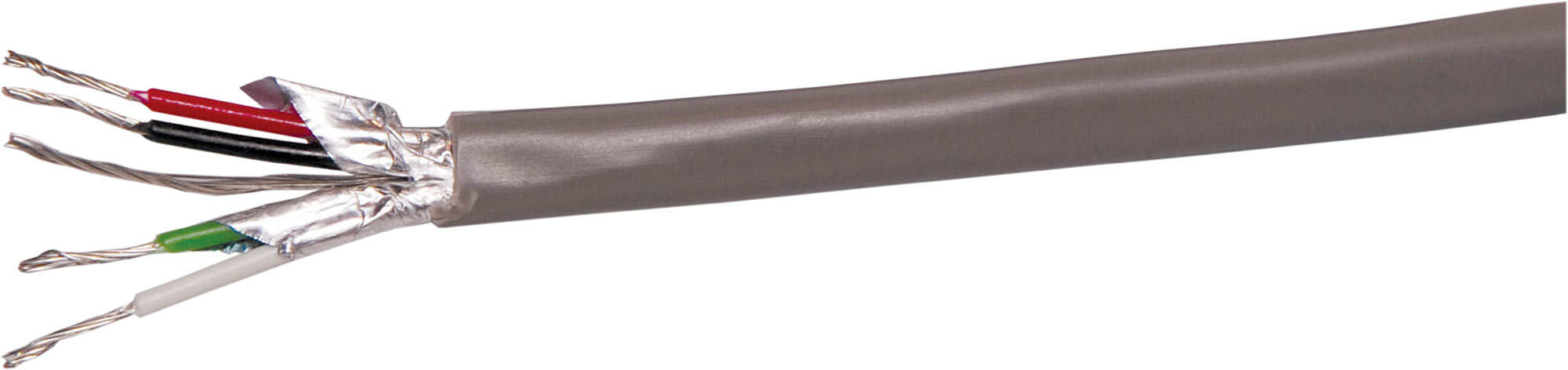

Cross Section

Specifications

Conductor colours:

  • Pair 1: Black & Red
  • Pair 2: Green & White
  • Size: 7/0.20
  • No. of Conductors: 4
  • No. of Strands: 7
  • Strand Diameter: 0.20mm
  • Outside Diameter: 4.6mm
  • Conductor Area: 0.22mm2
  • Temperature Rating: 60ºC
  • Roll Size: 100m
