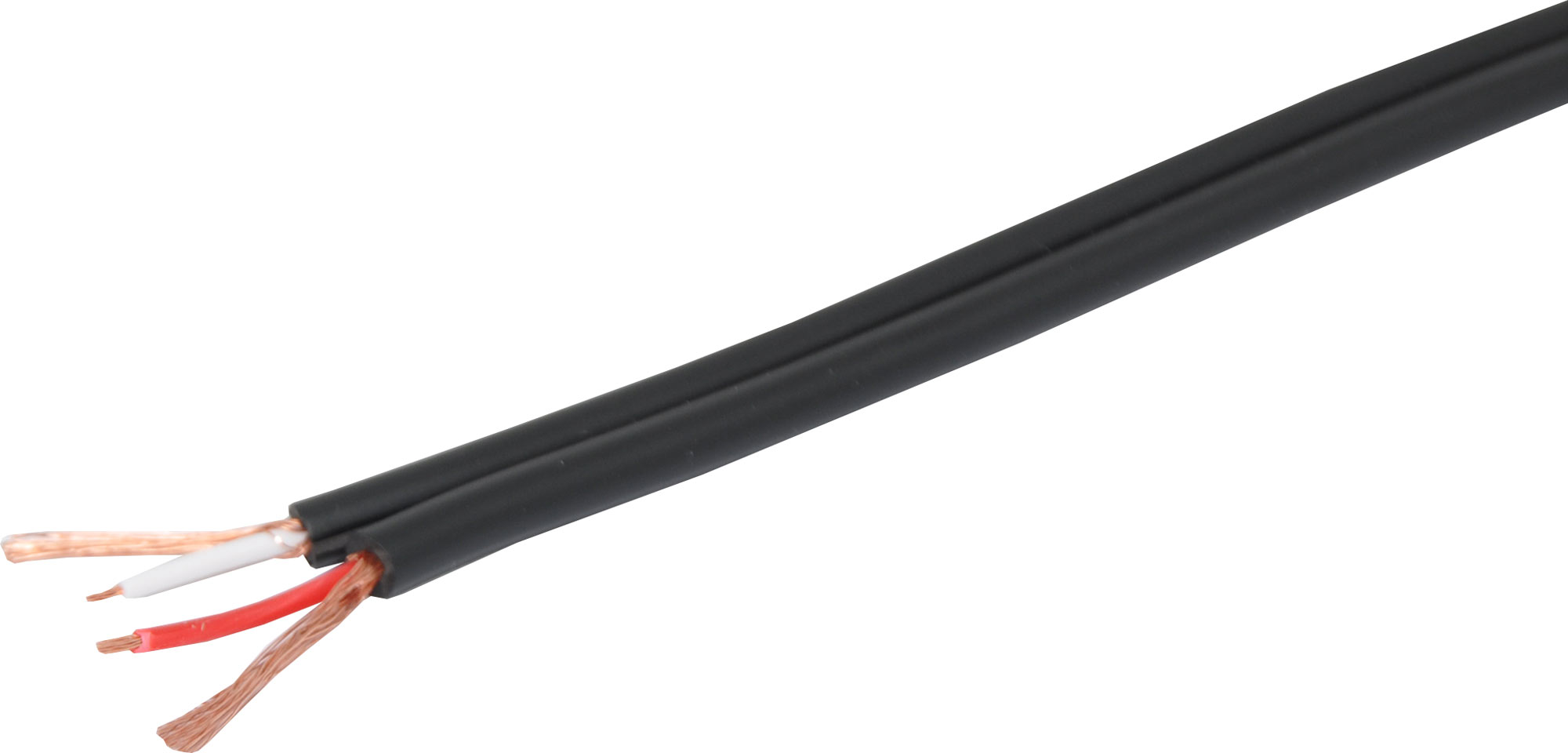

Heavy Duty Figure 8 Shielded Cable

SKU: W2995
High quality shielded audio cable suitable for use in professional and domestic sound applications.
$1.50

All Prices Shown are (ex GST)
Bulk Pricing
m $1.50
100+ $0.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

High quality shielded audio cable suitable for use in professional and domestic sound applications. 100m roll.

Cross Section

Specifications

Conductor

  • Material: Bare Copper
  • AWG: 25AWG
  • Construction: 16/0.12mm ± 0.008mm
  • Stranded Diameter: 0.55mm

Insulation

  • Material: SR-PVC
  • Average Thickness: 0.33mm
  • Insulation Diameter: 1.30mm ± 0.008mm
  • Core Assembly: 2 Cores

Shielded

  • Material: Bare Copper
  • Construction: 34/0.12mm ± 0.008mm
  • Diameter: 1.54mm (each shielded)

Jacket

  • Material: PVC
  • Average Thickness: 0.92mm
  • Cable Diameter: 3.6 x 7.2 ± 10mm

Colour

  • Insulation: Red/White
  • Jacket: Black

Physical & Electrical Characteristics

  • Maximum DC Resistance: 11.1Ω/100m @ 20°C (max)
  • Tensile Strength (Insulation): = 2.11kgf/mm2
  • Tensile Strength (Jacket): = 1.05kfg/mm2
  • Elongation (Insulation & Jacket): = 100%

Mechanical Characteristics

  • Cold Blend: -20 ± 2°C/4hr No Crack

Packaging

  • Drum Size: 100m
