Cat6a U/UTP Outdoor LAN Data Cable (350 Roll)

Be the first to review this product
U/UTP (unshielded twisted pair) network cable with UV stabilised sheath for exterior use
SKU: W2745
$4.32
Per m
QuantityPrice
m$4.32
350+$3.59
700+$2.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

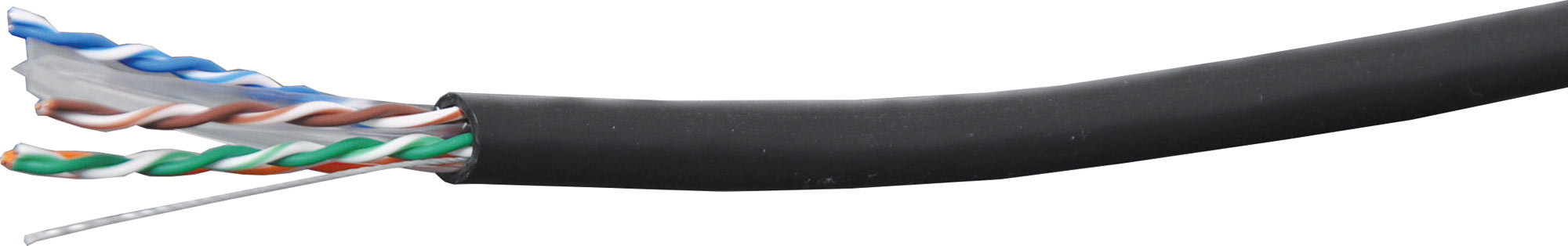

U/UTP (unshielded twisted pair) network cable with UV stabilised sheath for exterior use.

Cross Section

Specifications

Cable Specification: CAT6A Solid Core UTP

  • Cable Length: 350 meters

Conductor

  • Construction (mm): 1/0.508±0.005
  • Material: BARE COPPER
  • Cabling OD (mm): 0.508

Insulation

  • Material: HDPE
  • OD (mm): 0.90±0.05
  • Avg. Thickness (mm): 0.18
  • Color: 1, 2, 3, 4
  • Cores Twisted: Yes
  • Assemble: Cabling OD (mm): 5.00(Ref.) + Filler

Jacket

  • Material: PVC (Bright)
  • OD (mm): 6.20±0.20
  • Avg. Thickness (mm): 0.6
  • Color: BLACK 3C
  • Jet Print Color: WHITE

Electrical

  • Voltage rating: 30V
  • Temperature: 60°
  • Dielectric strength: AC-500V/MIN
  • Insulation resistance: 100M (OHMS*KM MIN at 20°)

3 Years

We Offer 3 Years for this product
