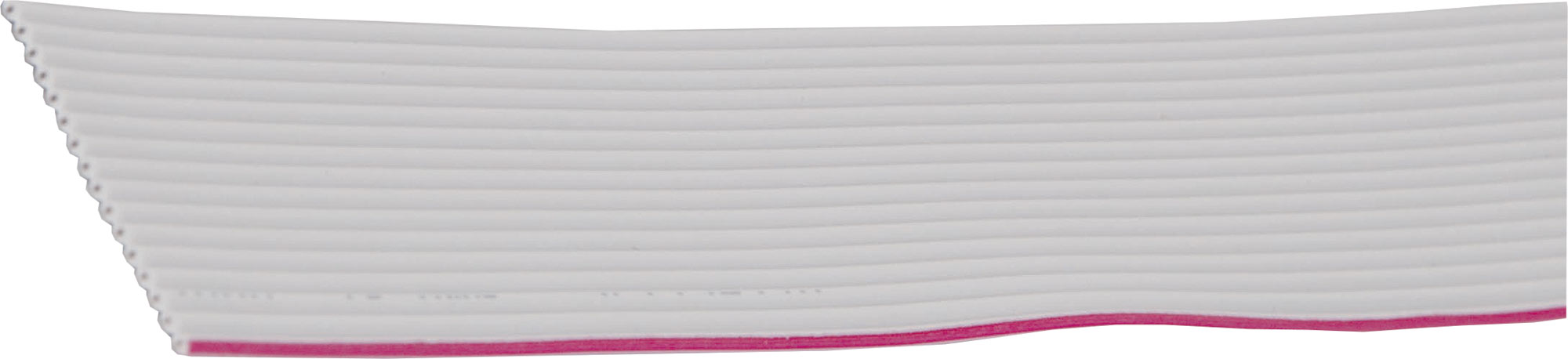

16 Wire IDC Cable

Be the first to review this product
16 Way. Grey insulation.
SKU: W2616
$3.18
Per m
QuantityPrice
m$3.18
30+$2.86
120+$2.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This ribbon cable is a quick and convenient way to connect circuit boards and IDE drives. Termination is very straightforward and it is compatible with both our IDC P 5310- P5350 cable sockets and our P4120-4153 range of D-sub connectors. 16 Way, Grey insulation. 30m Reel 1.27mm pitch

Specifications:

Conductor

  • Size: 28AWG (0.89mm2)
  • Material: tinned copper
  • Construction: 7/0.127mm

Insulation

  • Material: Fire resistant PVC 105ºC
  • Average thickness: 0.26mm
  • Minimum thickness: 0.18mm
  • Diameter: 16 x 1.29±0.15mm
  • Colour: grey (edge with red trace)

Electric

  • Conductor resistance: max. 237Ω/km, 20ºC
  • Insulation resistance: min. 100MΩ/km, 20ºC
  • Capacitance: 60pF/m (G-S-G), 42pF/m (G-S)
  • Inductance: 1.45µH/m
  • Impedance: 100±10Ω (G-S-G)
  • Propagation delay time 5.0ns/m
  • Spark test 2500V
  • Dielectric strength: min. 2kV in 1 minute
  • Rating voltage: max. 300V
  • Rating temperature: -20ºC to 105ºC
  • Standard: UL2651/CSA C22.2 No. 210.2

12 Months

We Offer 12 Months for this product
