RG6/U 75 Ohm Quad Screen Coaxial Cable

Be the first to review this product
Suitable for; Digital TV, Pay-TV, MATV. It features very low loss ratings due to its quad screen shielding and is the standard for commercial video signal distribution.
SKU: W2247
$1.82
Per m
QuantityPrice
m$1.82
100+$1.41
200+$1.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Suitable for; Digital TV, Pay-TV, MATV. It features very low loss ratings due to its quad screen shielding and is the standard for commercial video signal distribution.

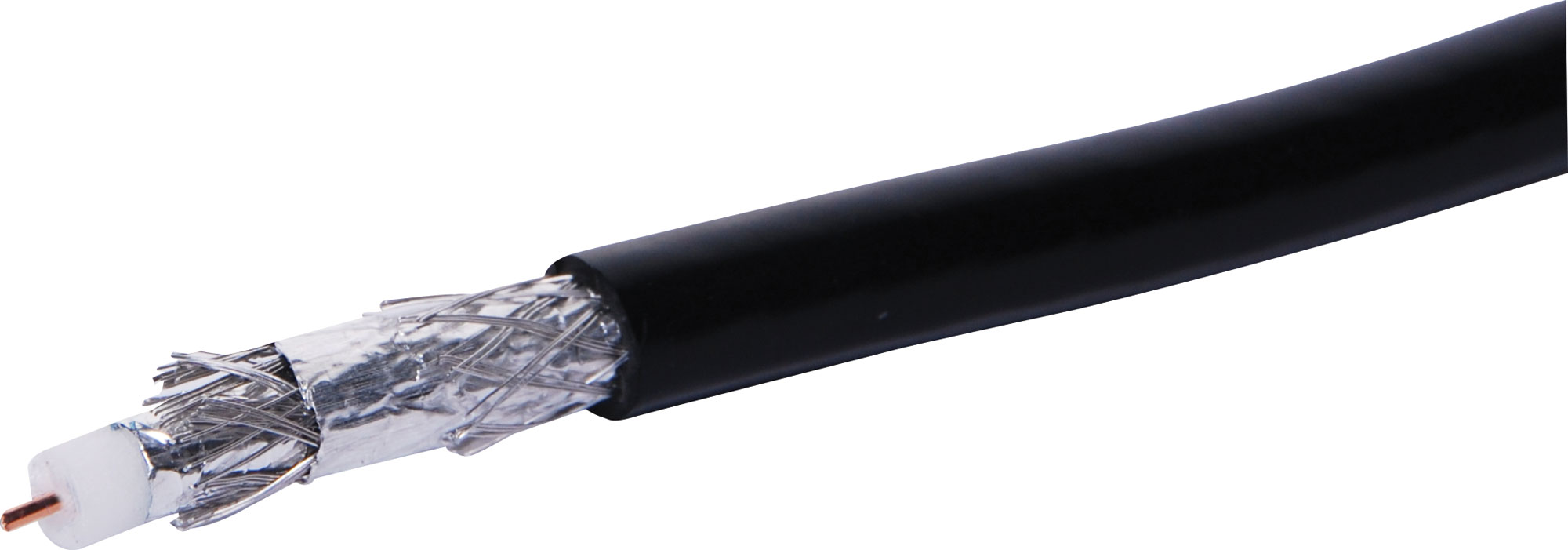

Cross Section

Specifications

Shielding

  • Size: 1 x 64/0.16, 1x 48/0.16
  • Braid Coverage: > 95%

Centre Conductor

  • Construction: Copper Clad Steel

Size: 1/1.02

  • Outside Diameter: 7.4mm
  • Conductor Area: 0.82mm2
  • Loss @ 100MHz: 7.71dB/100m
  • Roll Size: 100m
