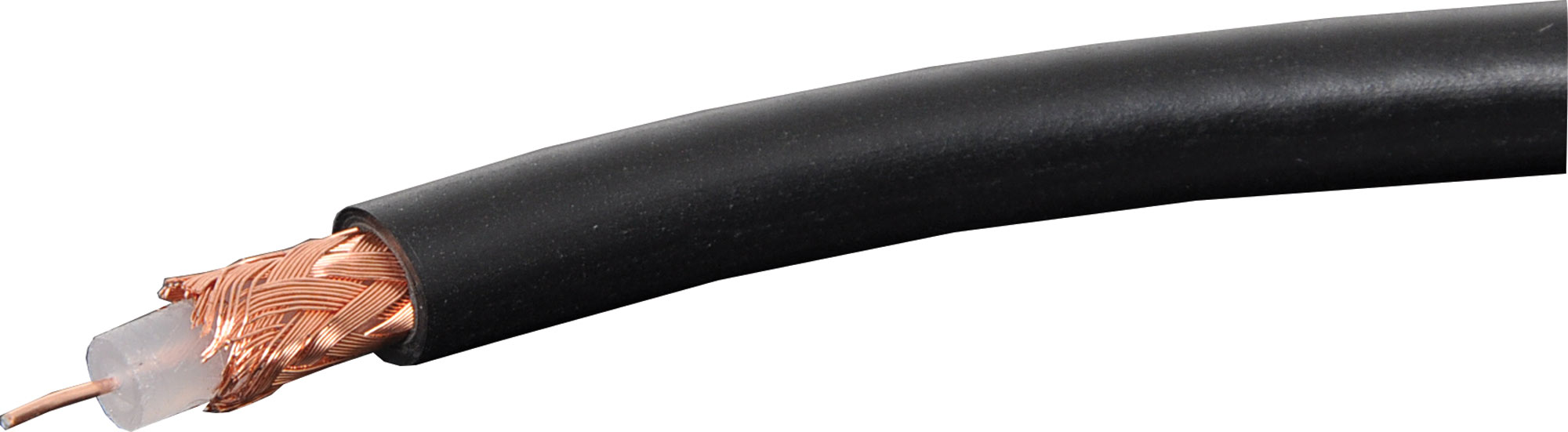

RG59B/U 75 Ohm Mil Spec Coaxial Cable

Be the first to review this product
Military MIL-C-17 standard. RG59B/U. Low interference, high quality 95% coverage shielding. Recommend for commercial applications requiring long cable runs.
SKU: W2240
$2.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Military MIL-C-17 standard. RG59B/U. Low interference, high quality 95% coverage shielding. Recommend for commercial applications requiring long cable runs.

Cross Section

Specifications

Shielding

  • Size: 16/7/0.16
  • Braid Coverage: 95%

Centre Conductor

  • Construction: Copper Clad Steel
  • Size: 1/0.584

Outside Diameter: 6.15mm

  • Conductor Area: 0.27mm2
  • Loss @ 100MHz: 13.8dB/100m

Roll Size: 300m
