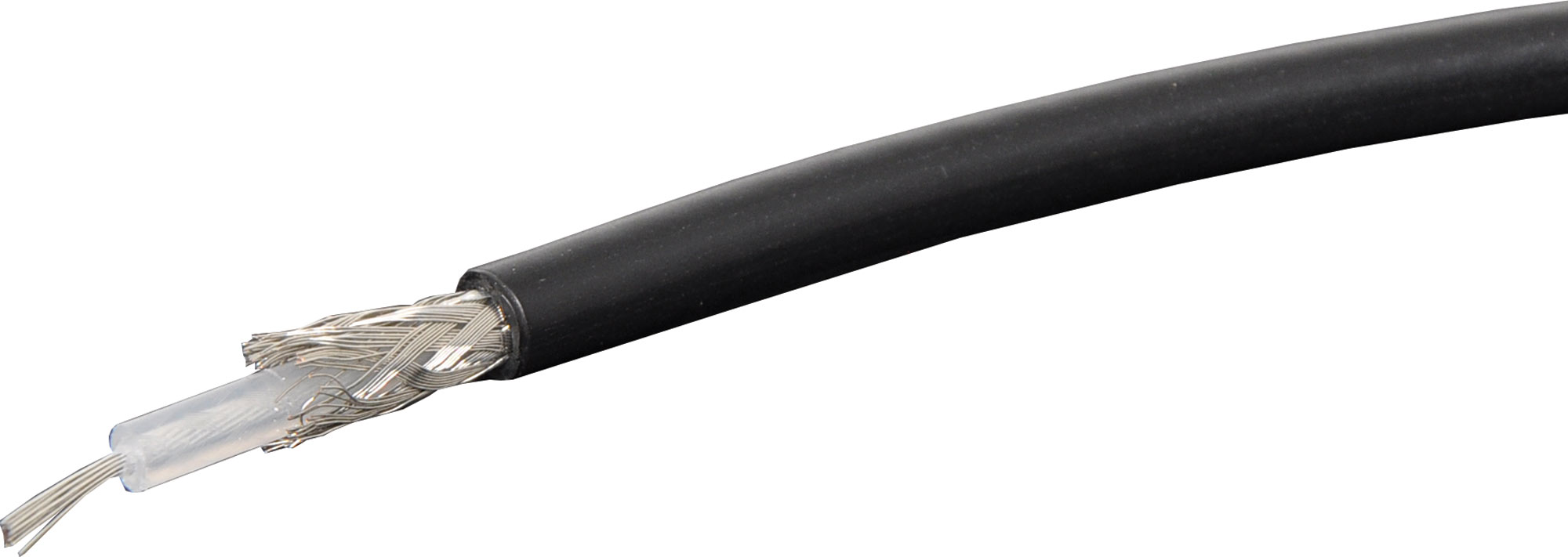

RG58C/U 50 Ohm Mil Spec Coaxial Cable (100 Roll)

Be the first to review this product
Military MIL-C-17 standard. RG58C/U
SKU: W2230
$1.82
Per m
QuantityPrice
m$1.82
100+$1.41
200+$1.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Typically used in CBs, two way radios and marine applica- tions. Military MIL-C- 17 standard.

Cross Section

Features

  • - Insulated by sign pressure, gas injected foamed dielectric
  • - Provide supper low attenuation loss in wider frequency range
  • - Maintain low loss and stable VSWR in high frequency against aging
  • - Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

Specifications:

Outside diameter: 4.95

  • Shielding size: 16/7/0.127
  • Conductor Area: 0.48mm2
  • Conductor: 19/0.18mm Stranded Tinned Copper
  • Insulation Nominal: 2.95mm Solid Polythylene
  • Loss @ 100MHz: 17.4dB/100m
  • Jacket Nominal: 4.95mm Black PVC
  • Shield Material & Coverage: 95% Tinned Copper Braid
  • Nom Imp Ohm: 50
  • Nom Vel Prop: 67%
  • Nominal Capacitance PF/m: 101

Nominal Attenuation

  • - 50 : 10.9
  • - 100 : 16.4
  • - 200 : 24.0
  • - 400 : 37.9
  • - 700 : 55.6
  • - 900 : 65.8
  • - 1000 : 70.7

12 Months

We Offer 12 Months for this product
