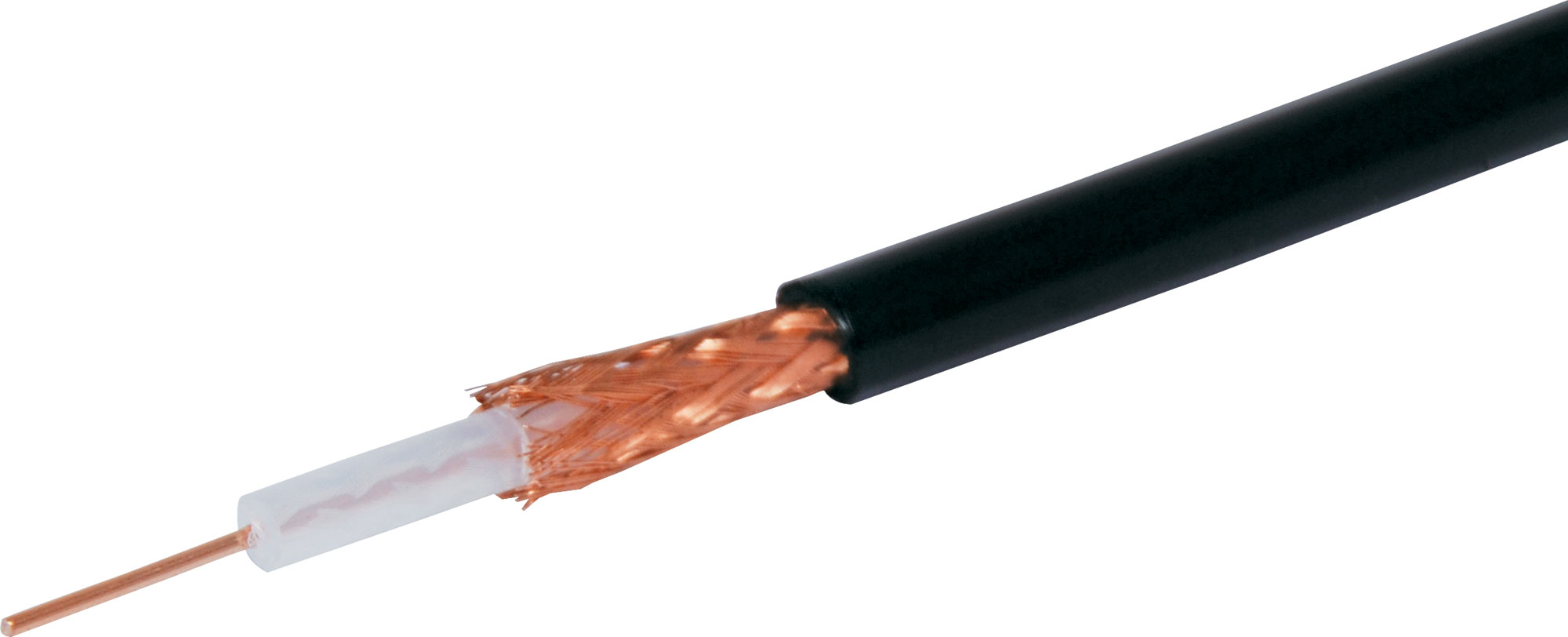

RG58C/U 50 Ohm Solid Core Mil Spec Coaxial Cable (100 Roll)

Be the first to review this product
Military MIL-C-17 standard. RG58C/U
SKU: W2229
$1.77
Per m
QuantityPrice
m$1.77
100+$1.59
200+$1.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Typically used in CBs, two way radios and marine applications. Military MIL-C-17 standard. RG58C/U

Cross Section

Specifications

Size: 16/7/0.127

  • Braid Coverage: 95%
  • Centre Conductor
  • Construction: Tinned Copper
  • Size: 1/0.80
  • Outside Diameter: 4.95mm
  • Conductor Area: 0.51mm2
  • Loss @ 100MHz: 17.4dB/100m
  • Roll Size: 100m

12 Months

We Offer 12 Months for this product
