RF400 50 Ohm Low Loss Coaxial Cable (100 Roll)

Be the first to review this product
A low loss cable for Ham, CB and marine communications.
SKU: W2228
$9.09
Per m
QuantityPrice
m$9.09
100+$8.14
200+$7.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A low loss cable for Ham, CB and marine communications.

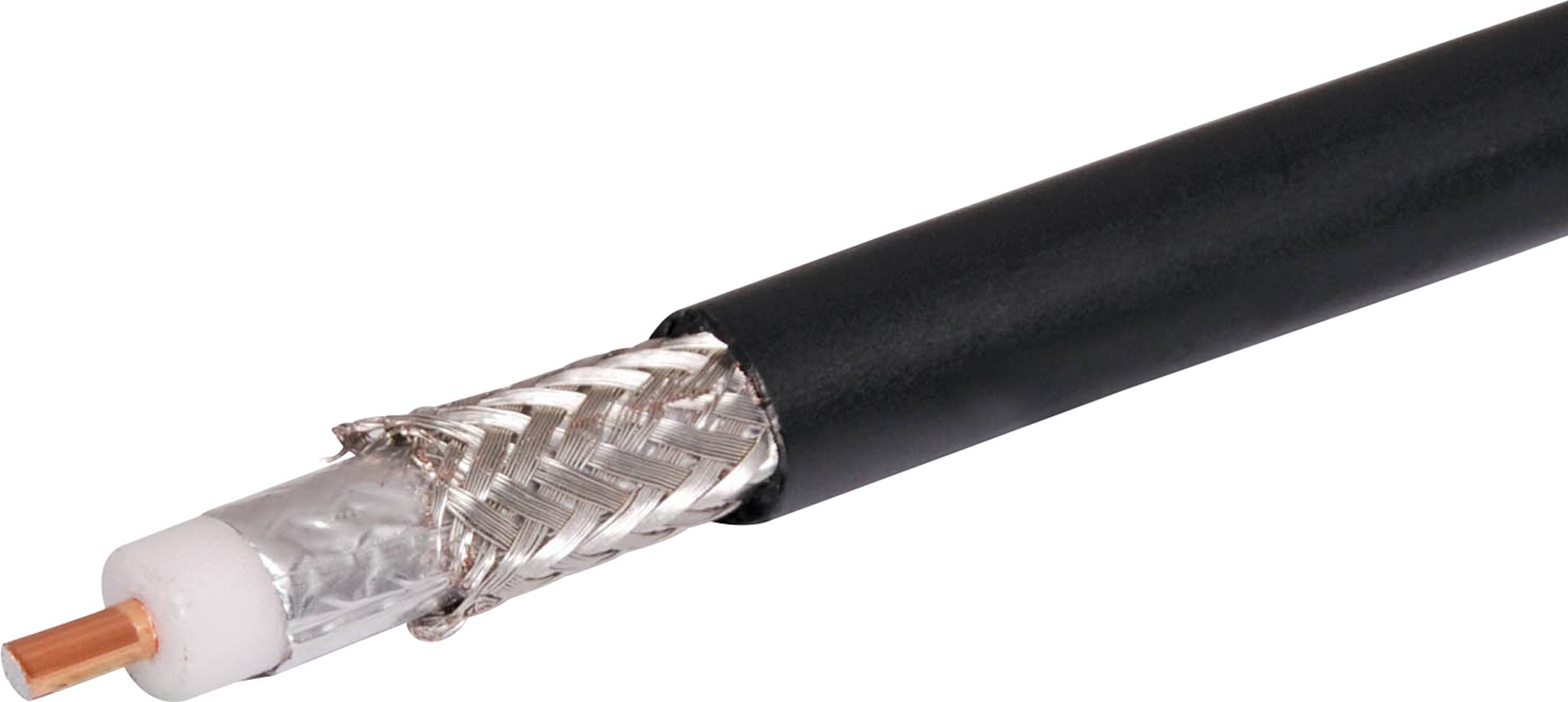

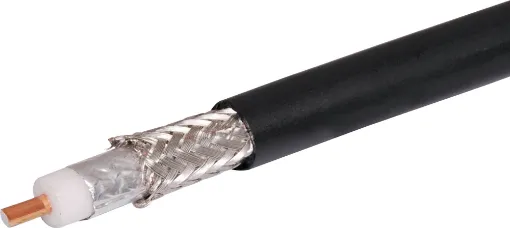

Cross Section

Features

  • Insulated by sign pressure, gas injected foamed dielectric
  • Provide supper low attenuation loss in wider frequency range
  • Maintain low loss and stable VSWR in high frequency against aging
  • Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

Specifications

Outside diameter: 7.24±0.10mm

  • Conductor: 2.74mm Solid Copper Clad Aluminum
  • Conductor construction: 1 /2.74±0.03mm
  • Insulation Nominal: 7.24mm Gas Injected foam PE
  • Jacket Nominal: 10.3mm Black PE
  • Shield Material & Coverage: Bonded Aluminum Foil and 85% Tinned Copper Braid
  • Nom Imp Ohm: 50
  • Nom Vel Prop: 85%
  • Nominal Capacitance PF/m: 80

Nominal Attenuation

  • - 50 : 2.9
  • - 100 : 3.9
  • - 200 : 5.7
  • - 400 : 7.5
  • - 900 : 13.0
  • - 1000 : 13.6
  • - 1500 : 17.0
  • - 2000 : 20.1

12 Months

We Offer 12 Months for this product
