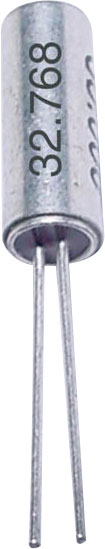

32.768khz Tuning Fork Clock Crystal

Be the first to review this product
32.768 kHz watch crystal as used in timing circuitry, clocks, wristwatches etc. DT-26T series.
SKU: V1902
$2.05
Per ea
QuantityPrice
ea$2.05
10+$1.95
25+$1.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

32.768 kHz watch crystal as used in timing circuitry, clocks, wristwatches etc.

DT-26T series.

Specifications:

Frequency tolerance: ±20ppm (@25°C)

  • Operating temperature:-10°C to 60°C
  • Shunt capacitance:2pf max.
  • Load capacitance:12.5pf
  • Insulation resistance:500MOhm @ 100VDC
  • Drive level:1µW max.
  • ESR (Equivalent series resistance):35KOhm

12 Months

We Offer 12 Months for this product
