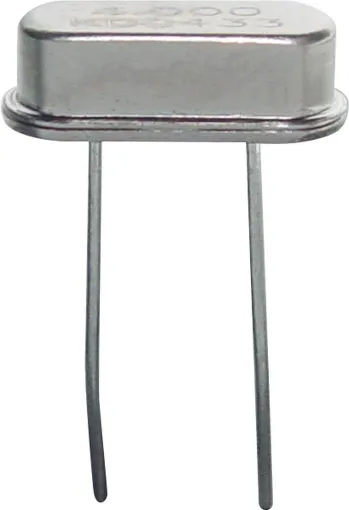

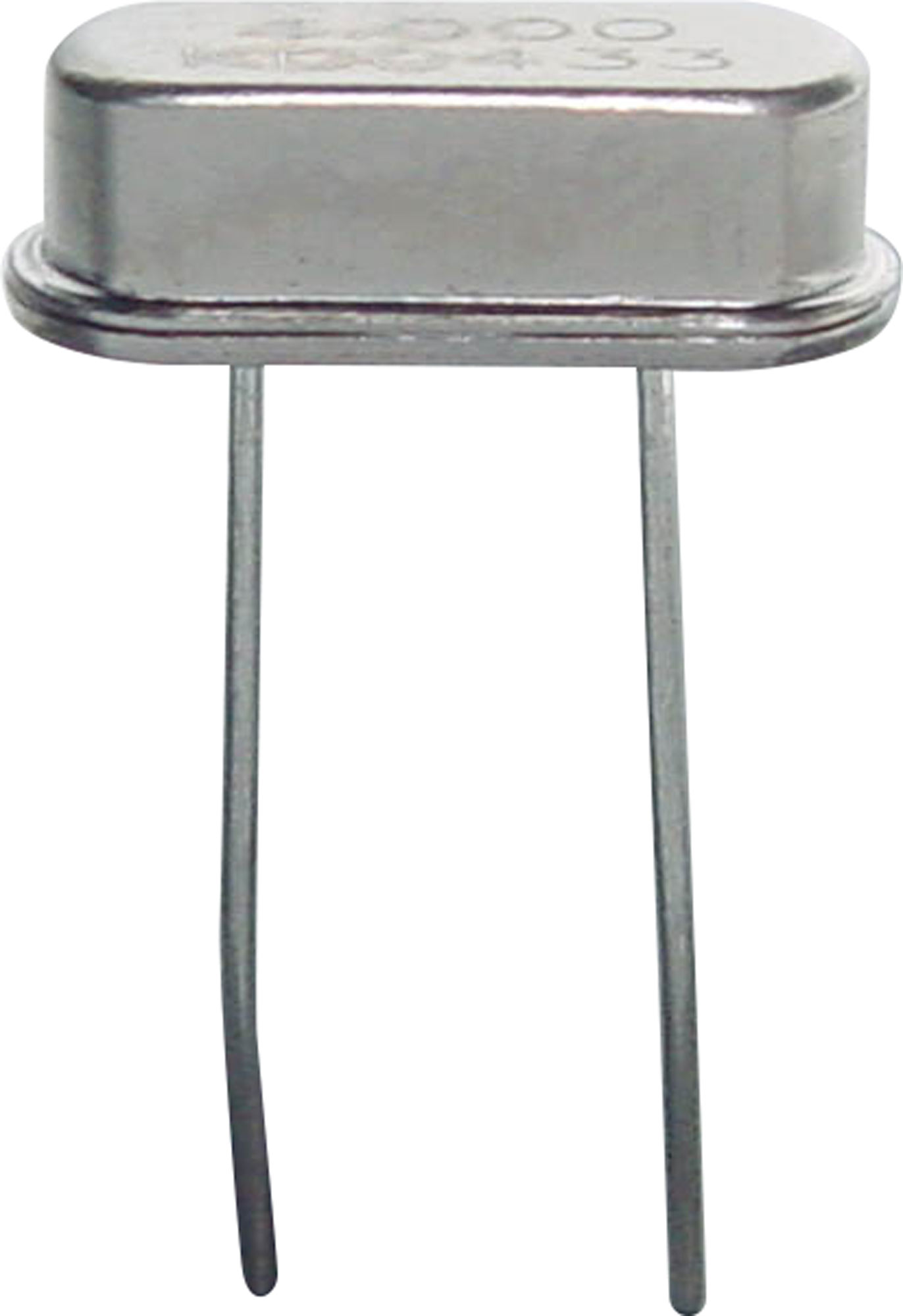

12.00000Mhz Low Profile HC49S Crystal

SKU: V1267A
HC49 Type, Fundamental operation
$4.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.59
10+ $4.14
25+ $3.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

HC49 Type, Fundamental operation

Specifications:

Equivalent Series Resistance (ESR): 35 Ohm Max

  • Frequency tolerance: ±30ppm (@25°C)
  • Operating temperature: -20°C to 70°C
  • Shunt capacitance: 7pf max.
  • Load capacitance: 10 to 32pf or series resonant
  • Insulation resistance: 500Meg Ohm @ 100VDC
  • Drive level: 1mW max

Warranty & Returns

12 Months

We Offer 12 Months for this product
