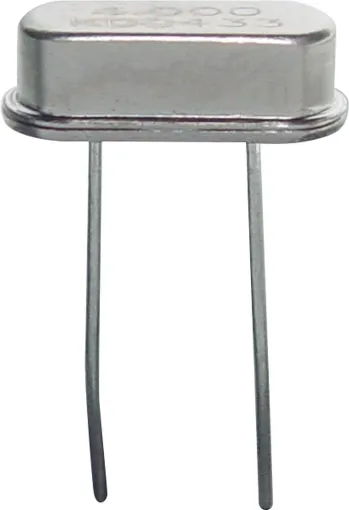

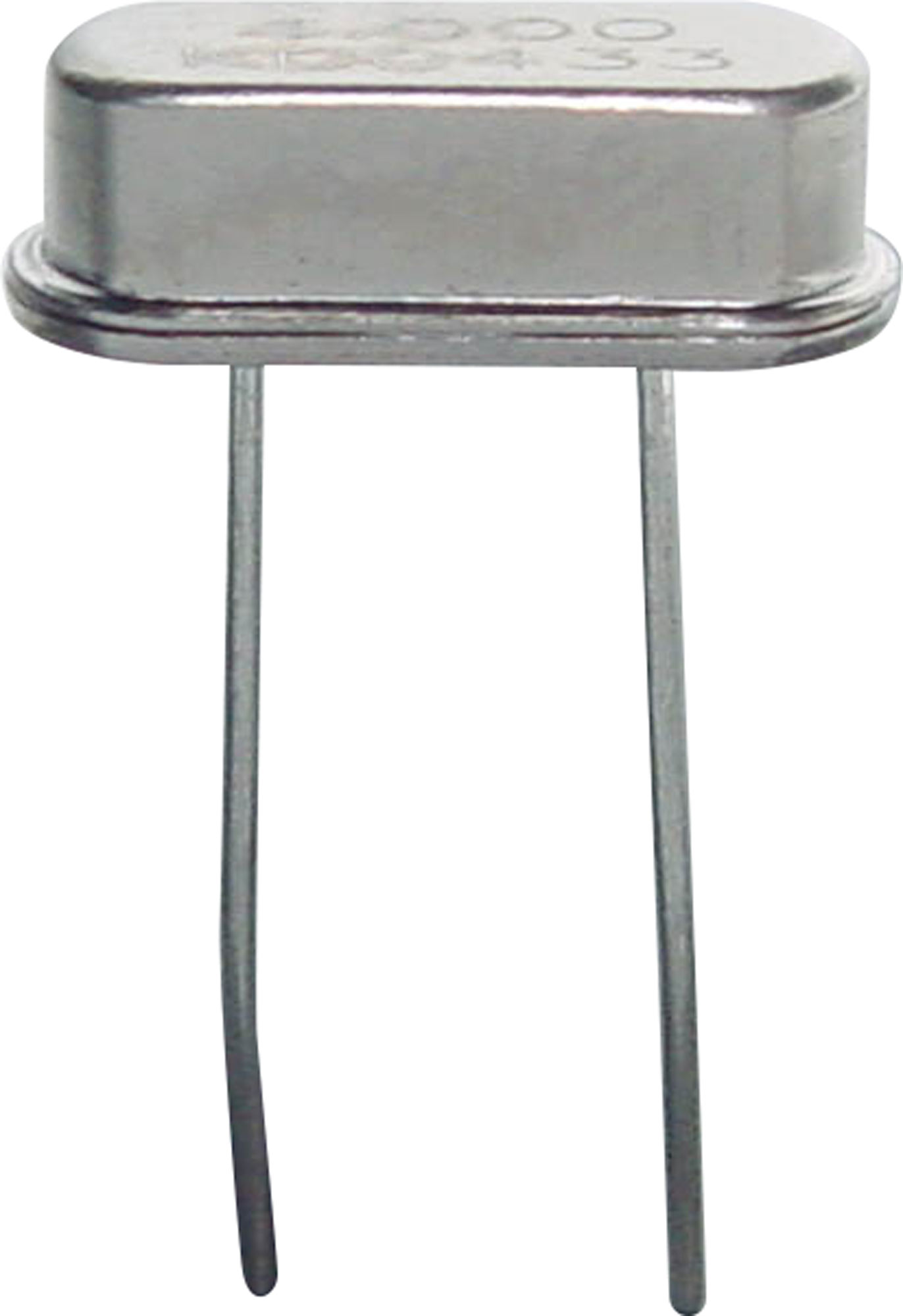

10.00000Mhz Low Profile HC49S Crystal

Be the first to review this product
HC49 Type, Fundamental operation
SKU: V1259A
$4.59
Per ea
QuantityPrice
ea$4.59
10+$4.14
25+$3.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

HC49 Type, Fundamental operation

Specifications:

Equivalent Series Resistance (ESR): 35 Ohm Max

  • Frequency tolerance: ±30ppm (@25°C)
  • Operating temperature: -20°C to 70°C
  • Shunt capacitance: 7pf max.
  • Load capacitance: 10 to 32pf or series resonant
  • Insulation resistance: 500Meg Ohm @ 100VDC
  • Drive level: 1mW max

12 Months

We Offer 12 Months for this product
