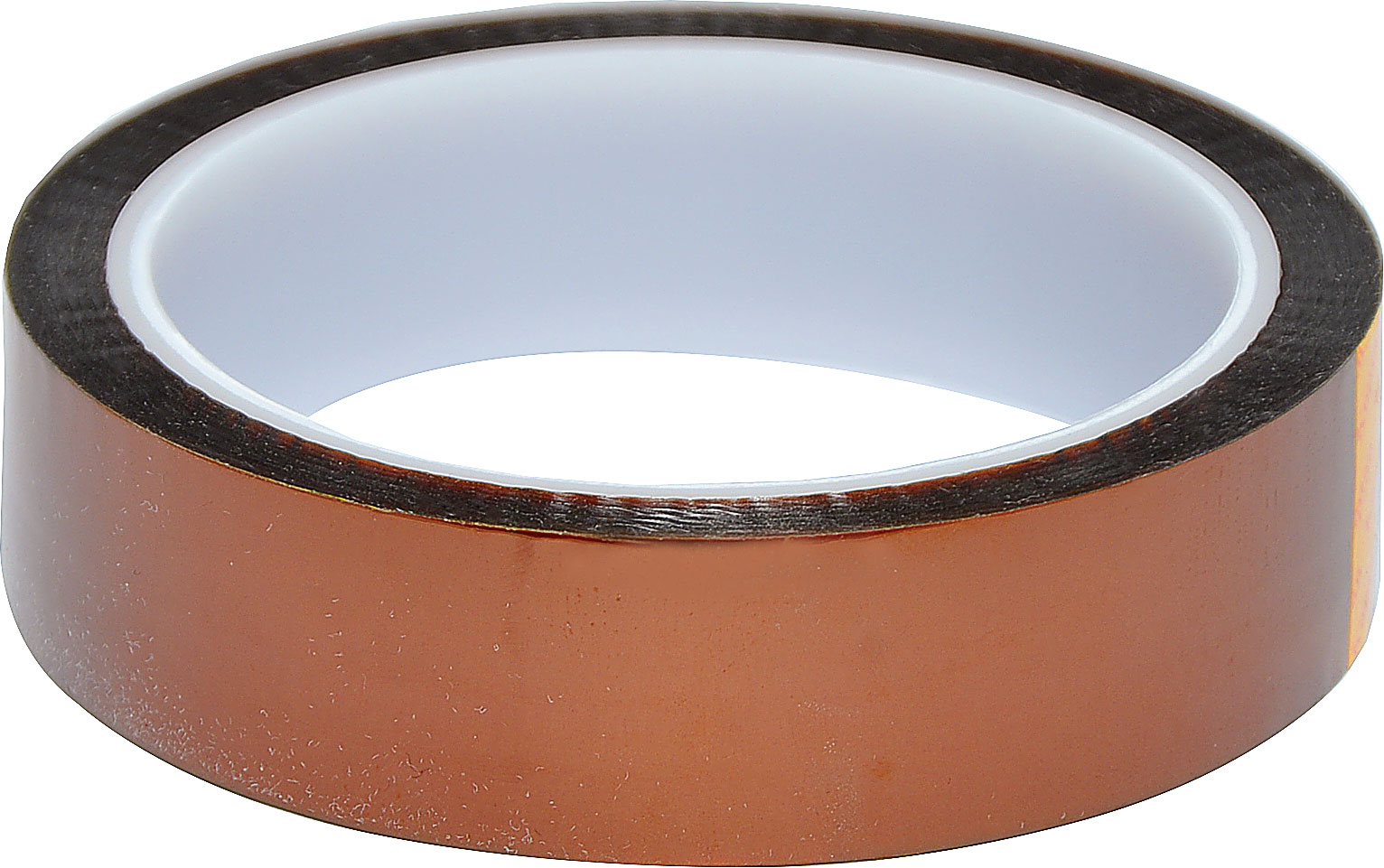

24mm x 33m High Temperature Polyimide Tape

Be the first to review this product
Offers high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue. Ideal for use in electrical insulation or masking circuit boards during wave soldering. 33m rolls.
SKU: T2975A
$18.41
Per ea
QuantityPrice
ea$18.41
4+$16.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These 33m rolls of 24mm wide, high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.

Typical Applications:
Magnet wire and cable
Slot liner insulation
lnter-layer insulation in motors and transformers
Flexible PCBs
Solder masking
3D printing

Specifications

Total Thickness: 60±2µm

  • Backing Thickness: 25µm
  • Initial Tack: 25±2
  • Adhesion to Steel: 6.5±1
  • Holding Power: =72hrs
  • Tensile Strength: 90
  • Elongation at Break: 70%
  • Max Temperature resistance: 260*C
  • Tape Structure: Silicon adhesive Pi film

12 Months

We Offer 12 Months for this product
