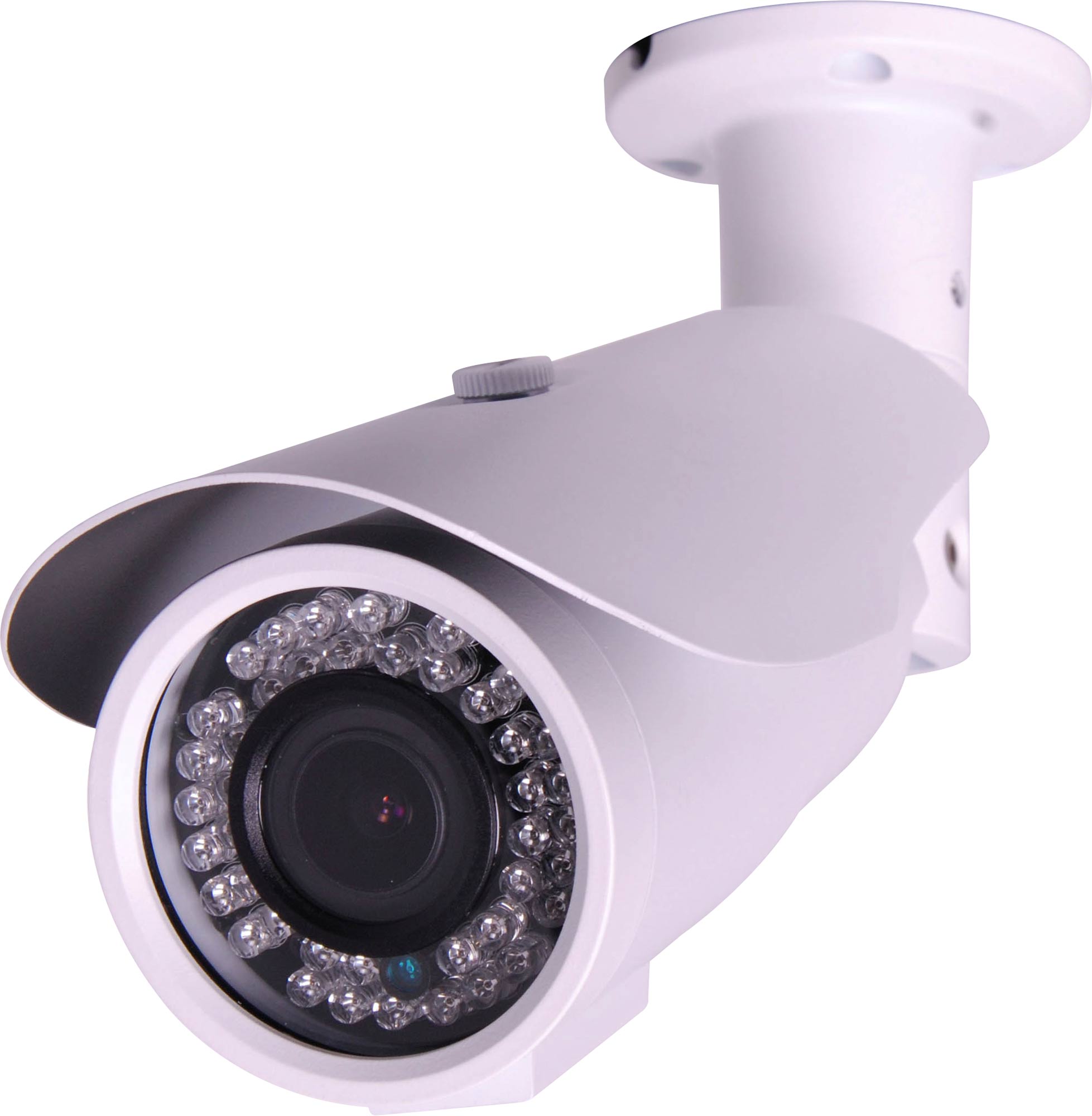

1080p TVI Vari-Focal IP66 IR Colour Bullet Camera

SKU: ST9137F
Suited for outdoor installations requiring a focal adjustment coupled with high quality 1080p CMOS sensor. The superbly constructed all-metal enclosure and 3-axis bracket allows easy adjustment even after the unit has been installed.
$131.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $131.82
3+ $118.18
6+ $108.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Suited for outdoor installations requiring a focal adjustment coupled with high quality 1080p CMOS sensor. The superbly constructed all-metal enclosure and 3-axis bracket allows easy adjustment even after the unit is mounted to the wall/ceiling. Sealed enclosure design (IP66 rated) is suitable for mounting areas exposed to the elements. IR illumination up to 30m is provided by 36 LEDs. Utilises the latest TVI technology which allows a 1080p video signal to be transmitted over existing coaxial cable runs.

NOTE: TVI cameras are only compatible with TVI DVRs.

Features

  • TVI technology which allows transmission of 1080p video over existing coaxial cable
  • 1/2.7” CMOS Sensor
  • 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • Day and night 24-hour surveillance with IR effective distance up to 25 meters
  • IP66 for weather-proof application

Specifications

Pick-up Element: 1/ 2.7” CMOS image sensor

  • Number of Pixels: 1930(H) x 1088(V)
  • Video Frame Rate: 1080P@30fps / 1080P@25fps
  • Min. Illumination: 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • S/N Ratio: More than 48dB (AGC OFF)
  • Shutter Speed: 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
  • Lens: f2.8 ~ 12mm / F1.4 ~ F2.8
  • Lens Angle:
  • Wide: 104° (Horizontal) / 56° (Vertical) / 124° (Diagonal)
  • Tele: 35° (Horizontal) / 20° (Vertical) / 40° (Diagonal)
  • IR LED: 36 units
  • IR Effective Distance: Up to 25 meters
  • IR Shift: YES
  • Day & Night Mode: YES
  • IRIS Mode: AES
  • White Balance: AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
  • AGC: Adjustable
  • Sharpness: Adjustable
  • Flickerless: 50HZ / 60HZ / OFF
  • BLC: Adjustable
  • IP Rating: IP66
  • Operating Temperature: -25? ~ 50?
  • Power Source (±10%): DC12V / 0.5A
  • Current Consumption (±10%): 400mA
  • Dimensions: 271.75L (148.9 Camera only)L x 95W x 87H mm
