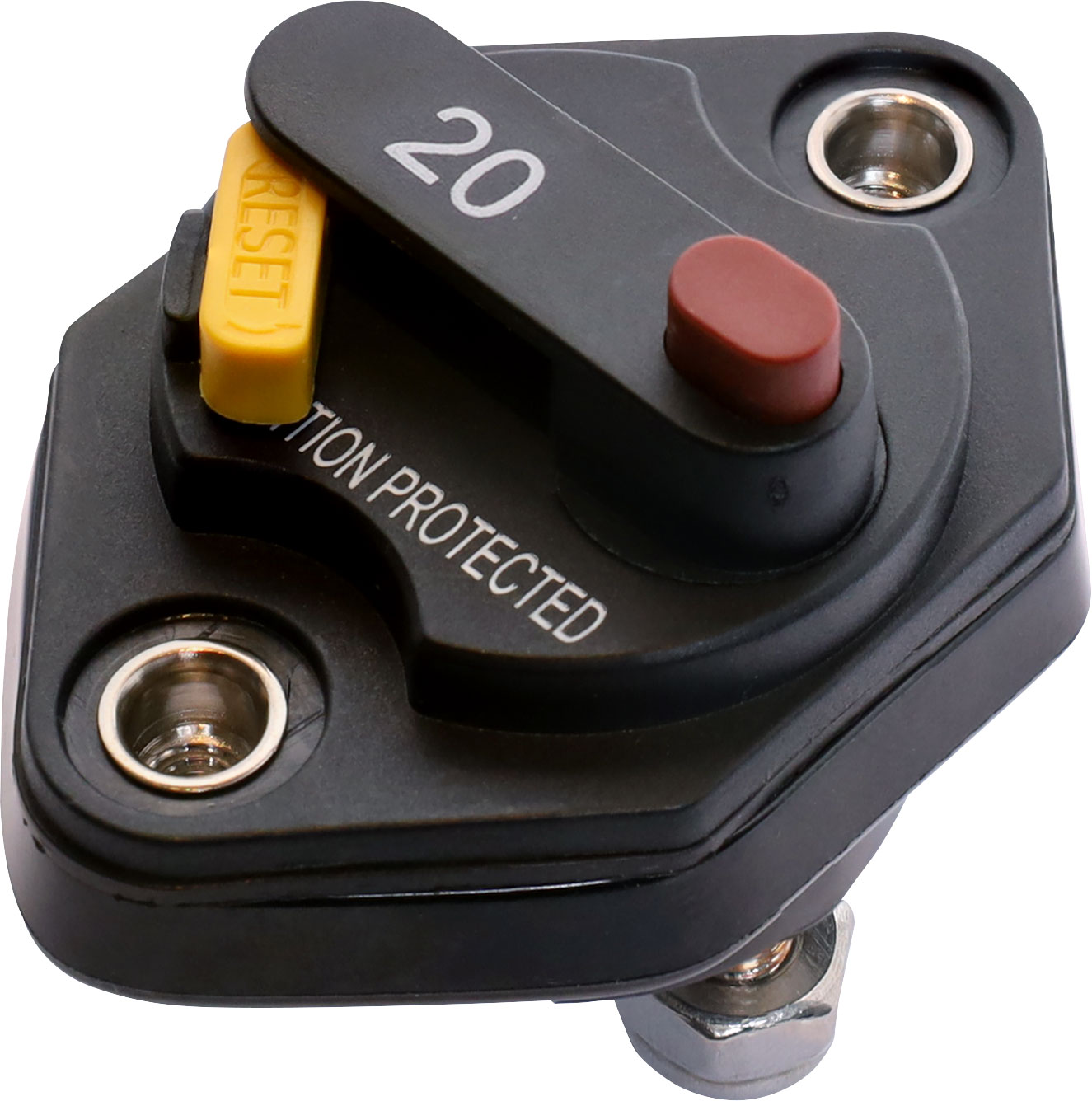

20A Compact Panel Mount IP66 Waterproof Circuit Breaker

SKU: SS5882
This 20A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It's compact profile design takes up minimal space on your switch panel and can be easily reset using the lever switch. It features a IP66 weatherproof casing with M6 terminal bolts.
$31.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.82
4+ $28.64
10+ $25.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 20A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It''s compact profile design takes up minimal space on your switch panel and can be easily reset using the lever switch.  It features a IP66 weatherproof casing with M6 terminal bolts for connection to power cabling. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J553, ABYC E-11 & SAE J1171 (ignition protected).



diagram

Specifications

Max. Voltage: 32V DC

  • Rating: 20A DC
  • Interrupt Rating: 3000A @ 32V DC (as per SAE & ABYC E-11)
  • IP Rating: IP66
  • Operating Temperature: -40°C to 85°C
  • Testing: SAE J553, ABYC E-11 & SAE J1171
  • Material: UL94V-0
  • External Dimensions: 55H x 37W x 33mm
