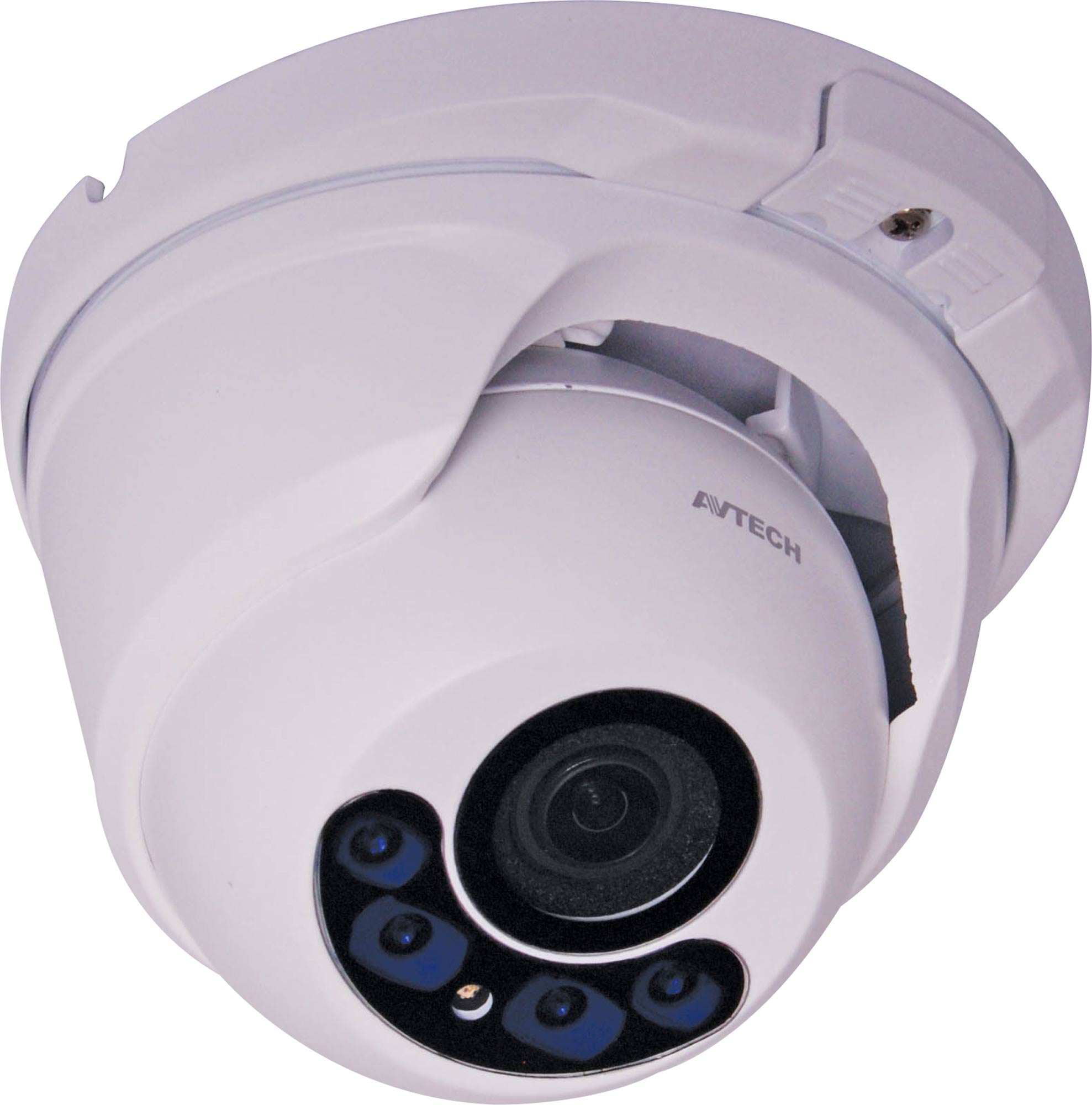

1080P TVI Motorized Zoom Vandal Resistant IR Dome Camera

SKU: SM9123F
Surface mount dome cameras housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution CMOS sensor produces clear crisp video signal. Motorised zoom
Save $54.55 $135.45 $190.00

All Prices Shown are (ex GST)
Bulk Pricing
ea
$135.45 $190.00
3+
$135.45 $177.27
6+
$135.45 $168.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Surface mount dome camera housed in vandal resistant IP66 aluminium housing with infra red illumination for night time viewing. High resolution CMOS sensor produces clear crisp video signal. Lens has an adjustable focal length (2.8-8.0mm). Specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, carparks etc. Operating temperature down to -25°C for cool room use.

This camera is able to be set up via either mobile phone using the ''Eagle Eyes'' app which is available to download from our AV-Tech DVRs or using an existing AV-Tech DVR. This is ideal for installers as they can save time by not having to set the up the camera at the point of installation. It can simply be carried out remotely for each camera at the DVR.

Features

  • 1/2.7” CMOS sensor with 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • EZUM series to support focus and camera parameters adjustment remotely from AVTECH HD CCTV DVR
  • Manual adjustment of the IR LED brightness
  • Day and night 24-hour surveillance with IR effective distance up to 50 meters
  • IP66 for weather-proof application
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR

Specifications

Pick-up Element: 1/ 2.7” CMOS image sensor

  • Number of Pixels: 1930(H) x 1088(V)
  • Video Frame Rate: 1080P@30fps / 1080P@25fps
  • Min. Illumination: 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • S/N Ratio: More than 48dB (AGC OFF)
  • Shutter Speed: 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
  • Lens motorized: f2.8 ~ f8.0mm / F1.6 ~ 2.8
  • Lens Angle:
  • - Wide: 104° (Horizontal) / 56° (Vertical) / 126° (Diagonal)
  • - Tele: 57° (Horizontal) / 32° (Vertical) / 65° (Diagonal)
  • IR LED: 4 units
  • IR Effective Distance: Up to 50 meters
  • IR Shift: YES
  • Day & Night Mode: YES
  • IRIS Mode: AES
  • White Balance: AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
  • AGC: Adjustable
  • Sharpness: Adjustable
  • Flickerless: 50HZ / 60HZ / OFF
  • BLC: Adjustable
  • IR Brightness Adjustment: YES
  • IP Rating: IP66
  • Operating Temperature: -25℃ ~ 50℃
  • Operating Humidity: 90% or less relative humidity
  • Power Source: (±10%) DC12V / 1A
  • Current Consumption: (±10%) 220mA (IR LED OFF) / 900mA (IR LED ON)
  • Net Weight (kg): 0.75

Warranty & Returns

12 Months

We Offer 12 Months for this product
