12.8V 135Ah Slimline Lithium LiFePO4 Battery

Manufacturer: Powerhouse
Be the first to review this product

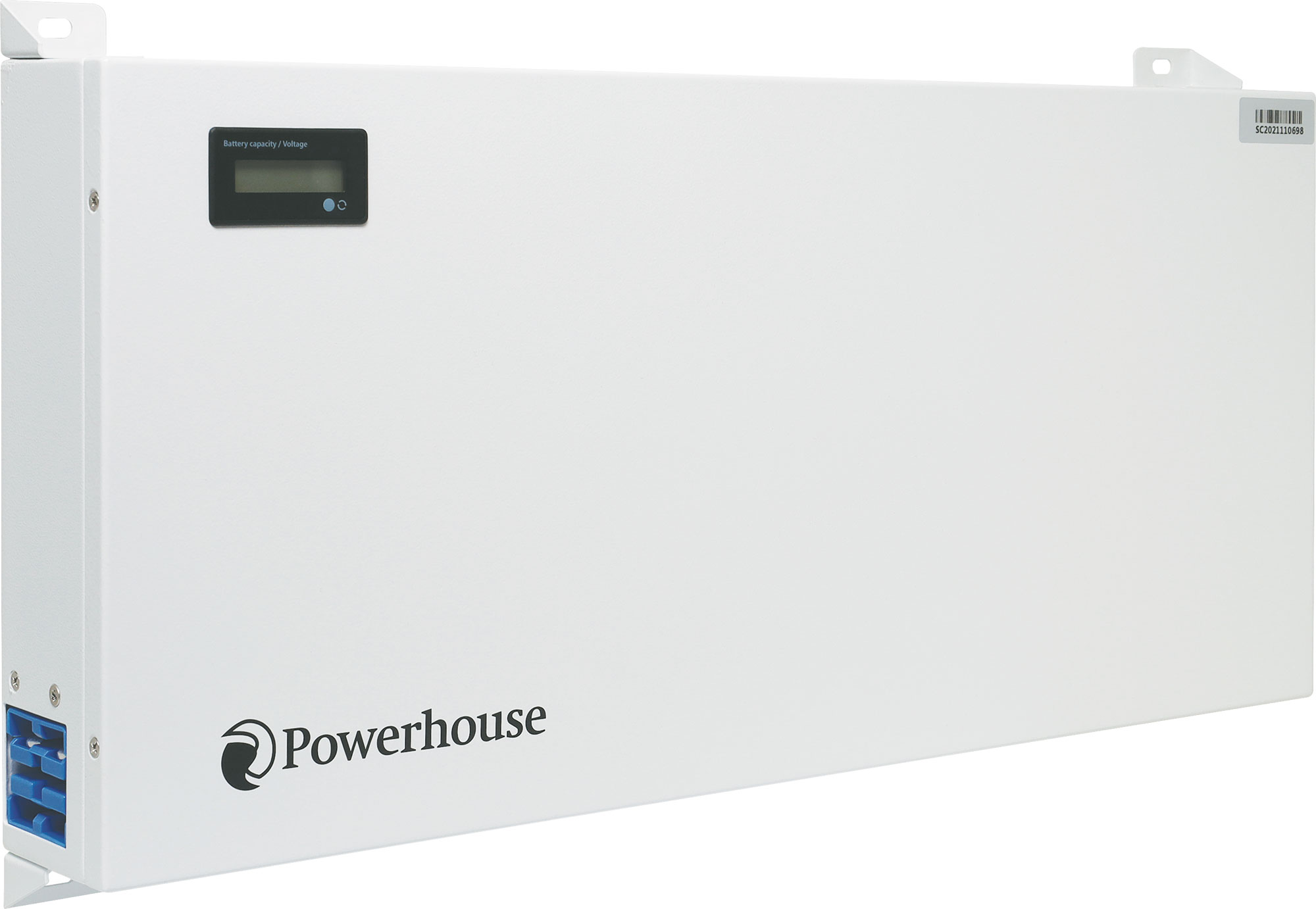

These slimline lithium (LiFePO4) batteries are for situations where space is at a premium these compact mountable batteries measure just 65mm high and weigh just 25kg.
SKU: SL4580W
$1,180.91 $726.36
Per ea
Save $454.55
QuantityPrice
ea $1,180.91 $726.36
2+ $1,062.73 $726.36
4+ $944.55 $726.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These slimline lithium (LiFePO4) batteries are for situations where space is at a premium these compact mountable batteries measure just 75mm high and weigh just 25kg. Each is fitted with 120A Anderson input and output plugs for easy connection to your equipment or solar charger output. Each utilises the same battery management system found in the standard LiFePO4 battery series for safe operation at all times, plus a handy voltage & capacity readout.

About LiFePO4.
The latest generation in maintenance free batteries is here! LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provide more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts. Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off.

Factory supplied 30% charge for safety compliance. Must be charged fully before use.

Note: Does not mate with Grey Anderson SB120 connector - SUITS BLUE ANDERSON ONLY, see accessories below (this plug has a slightly different keyway).

IMPORTANT NOTE: A fixed installation of this battery in a recreational vehicle such as a caravan, camper or 4WD must adhere to Australian Standard AS/NZS 3001:2. We recommend all customers familiarise themselves with the standards requirements before using these batteries in fixed installations of this type. A professional installer should be consulted when a fixed battery installation is required in a recreational vehicle.

Features

  • 5 year warranty.
  • Slimline casing just 75mm high!
  • High discharge rate design allows current draw up to 100A.
  • Battery capacity and voltage readout.
  • 120A Anderson style connection for easy integration with solar & appliance cabling.
  • Stable LiFePO4 chemistry suitable for in vehicle use as auxiliary batteries.
  • Internal battery management system for safe charging and discharging.

Specifications

For extended specfications, please refer to our datasheet PDF download

    General

    • Dimensions: 600L x 370W x 75Hmm
    • Overall Weight: 220kg
    • Terminal Type: NM
    • Connection: 12V-48V max 4 in series, no limit in parallel.
    • Note: When used in series each battery will need to be discharged to cut off before connecting so that all cells are all balanced.
    • Case Material: Metal
    • Case IP Rating: IP50
    • Certification: CB/CE
    • Shipping Class: UN3480, Class 9

    Battery Module

    • Nominal Voltage: 12.8V
    • Capacity: 135Ah
    • Charging Voltage: 14.8V max, (Recommended 14.2V)
    • Discharging Voltage: 9.6V max, (Recommended 11.8V)
    • Charging Current: 100A max, Recommended 25A
    • Max Constant Discharge: 100A


    pic

    pic

    pic


    5 Years

    We Offer 5 Years for this product
